Author: Subject: Vortx Mazda diff
tom200490

posted on 6/2/16 at 12:07 PM Reply With Quote
Vortx Mazda diff

Hi All,

I'm new to the forum and I have just started building a Mazda engined Vortx

I've came across a small issue when trial fitting the diff that I'm hoping somebody will be able to help me resolve so I can crack on with the rest of the build.

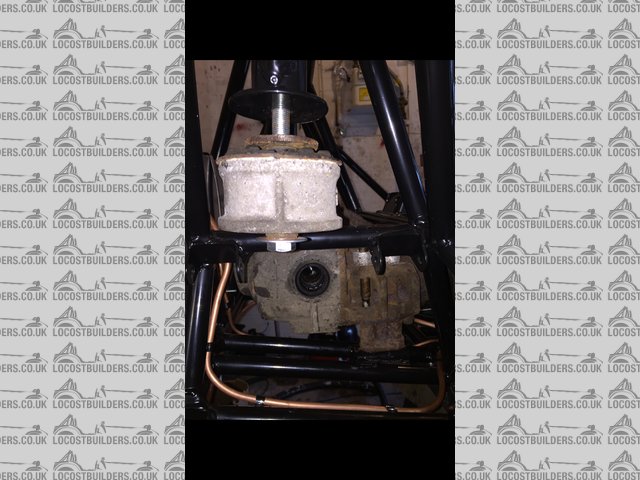

Have others had to make any mountings/spacers between the two back diff mountings and the chassis? I'm presuming the front of the diff is solid mounted? If I was to bolt the front up it would leave a substantial gap between the rear mounts and the chassis.

Hopefully this makes sense to anyone that's build a Mazda engined Vortx before but please see photo.


Any help would be much appreciated.

Thanks in advance

Tom




Description
Description

View User's Profile View All Posts By User U2U Member
sdh2903

posted on 6/2/16 at 01:36 PM Reply With Quote
Yes you need a spacer. Some use the diff mount rubber bush thingys off the donor. I had a pair of alloy spacers turned up. Around 20mm thick from memory.
View User's Profile View All Posts By User U2U Member
sdh2903

posted on 6/2/16 at 01:40 PM Reply With Quote
Can just see in this pic

Diffspacer
Diffspacer

View User's Profile View All Posts By User U2U Member
tom200490

posted on 6/2/16 at 02:28 PM Reply With Quote
Thanks, that's exactly the answer I needed! I'll have my brother make a pair when he's back to work

[Edited on 6/2/16 by tom200490]

View User's Profile View All Posts By User U2U Member
clutch_kick

posted on 7/2/16 at 12:31 PM Reply With Quote
Here's mine ...




[Edited on 7/2/16 by clutch_kick]

View User's Profile Visit User's Homepage View All Posts By User U2U Member
tom200490

posted on 7/2/16 at 06:28 PM Reply With Quote
Thank you both, managed to sort it this afternoon. The spacers will be with me in the next few days
View User's Profile View All Posts By User U2U Member
sdh2903

posted on 7/2/16 at 07:51 PM Reply With Quote
Although I'm a little baffled as to why they should be needed in the first place. Why dont they just make the diff mount tubes longer??
View User's Profile View All Posts By User U2U Member
tom200490

posted on 7/2/16 at 08:10 PM Reply With Quote
I did think the same. I managed to find part of the mounts that were used on the donor (a rubber bushing with a metal cup) but I wasn't overly happy with using them. MNR did take diff measurements when I ordered the kit so perhaps some of the mx5 diffs are slightly taller..
View User's Profile View All Posts By User U2U Member
Slimy38

posted on 7/2/16 at 08:47 PM Reply With Quote
The 1.6 and 1.8 diffs are slightly different size, about an inch. I wonder whether they've done the spacer thing so you can use either diff without it being out of position?
View User's Profile View All Posts By User U2U Member
tom200490

posted on 9/2/16 at 09:29 PM Reply With Quote
I will make a full build thread over the next few days, I've got 3 people working a full week on the car with me so I'm making a lot of progress.

I don't suppose anyone has a photo of the mx5 bias valve in position so I can figure out these brake lines? Or even better a diagram of how they are laid out? Most of my photos from the factory are saved to my work computer and I'd really prefer not to go in

I'm pretty certain I'm missing one line from the kit, as the supplied lines would give me no way of plumbing in the brake pressure switch in the t-piece between the front shocks. I don't mind making up a new pipe, but would prefer to see how others are laid out.


Thanks

View User's Profile View All Posts By User U2U Member
clutch_kick

posted on 9/2/16 at 09:35 PM Reply With Quote
quote:
Originally posted by tom200490
I will make a full build thread over the next few days, I've got 3 people working a full week on the car with me so I'm making a lot of progress.

I don't suppose anyone has a photo of the mx5 bias valve in position so I can figure out these brake lines? Or even better a diagram of how they are laid out? Most of my photos from the factory are saved to my work computer and I'd really prefer not to go in

I'm pretty certain I'm missing one line from the kit, as the supplied lines would give me no way of plumbing in the brake pressure switch in the t-piece between the front shocks. I don't mind making up a new pipe, but would prefer to see how others are laid out.


Thanks





[Edited on 9/2/16 by clutch_kick]

View User's Profile Visit User's Homepage View All Posts By User U2U Member
tom200490

posted on 9/2/16 at 09:45 PM Reply With Quote
Thankyou, I was hoping it would be like this. In other photos I've seen it screwed into a t-piece at the front. Perhaps they hadn't used the mx5 bias valve.
View User's Profile View All Posts By User U2U Member
micksalt

posted on 12/7/16 at 10:03 AM Reply With Quote
quote:
Originally posted by tom200490
Thankyou, I was hoping it would be like this. In other photos I've seen it screwed into a t-piece at the front. Perhaps they hadn't used the mx5 bias valve.


Probably too late to help you, but useful for anyone else that might read this, the valves screwed directly into the (4-way) t-piece is for the bike-engined cars with the twin master cylinders and balance bar. The MX-5 master cylinder has three outlets, so there's a spare without the need for a 4-way t-piece.

View User's Profile View All Posts By User U2U Member
l5tuy

posted on 13/7/16 at 12:02 PM Reply With Quote
How did you (or anyone else reading) connect the pressure switch electronically? Does this have something to do with the connector hanging out of the donor brake reservoir, or is this just fluid level. Is there a connector already within the donor mazda loom??

Thanks

Stu

View User's Profile View All Posts By User U2U Member
micksalt

posted on 13/7/16 at 12:54 PM Reply With Quote
Hi Stu,

No, nothing to do with with the wire hanging out of the brake fluid reservoir, that is the low fluid warning switch. The pressure switch in question replaces the contact switch that was originally engaged with the MX-5 brake pedal (so probably has a different connector style). This switch is to activate the brake lights.

Some folk have had issues with the pressure brake switch, and have recommended a contact switch instead.

Cheers,

Mick

View User's Profile View All Posts By User U2U Member
l5tuy

posted on 13/7/16 at 01:47 PM Reply With Quote
Ah, I see.

I've fabricated a bracket and used the original pedal switch so I guess I'll just keep the pressure swith as a back-up.

Cheers

View User's Profile View All Posts By User U2U Member
miskit

posted on 13/7/16 at 08:09 PM Reply With Quote
I am pretty sure( if you are re using the original loom) you will need to reconnect the fluid level sensor as that hooks into the handbrake warning light. - Same light for "handbrake on" and "low brake fluid level".

Hope to build one of these myself (on the look out for an unfinished build!). How's it been so far? - Did you re use the MX5 pedals as the MNR box is pricey.

[Edited on 13/7/16 by miskit]

View User's Profile View All Posts By User U2U Member
micksalt

posted on 14/7/16 at 07:26 AM Reply With Quote
quote:
Originally posted by miskit
Hope to build one of these myself (on the look out for an unfinished build!). How's it been so far? - Did you re use the MX5 pedals as the MNR box is pricey.



Got off to a bit of a wobbly start with parts missing from the kit and a design change that had lead to a brake pedal that wouldn't actually work. However, that seemed to be a temporary blip in an otherwise excellent customer service record, and everything seems to be sorted now. In the MX-5 model, there isn't really a pedal box anymore, it is actually part of the chassis, with all the holes ready-cut for the cylinders to just bolt in. They've done a lot of the hard work for you already, which is really nice

View User's Profile View All Posts By User U2U Member
miskit

posted on 14/7/16 at 09:23 PM Reply With Quote
That's odd as MNR just priced me the pedal box at £325. Which I thought was a hefty chunk.

Am I right in thinking that the tub section (rear and sides) is the largest piece - if so roughly how long and wide is it?. I just saw that a chassis fits neatly on a roof rack which got me thinking about putting the rest of a starter kit in my stripped out Picasso. I have shifted some big stuff in it - 2m L x 1.4m W x .9m H is easily done any more needs careful looking at. If I do buy new it would save me a lot in van rental, fuel (600mile trip) and ferry costs.

View User's Profile View All Posts By User U2U Member
micksalt

posted on 15/7/16 at 07:25 AM Reply With Quote
Putting the chassis on the roof rack is a lot of weight to put on top of an already tall car. I can give you the dimensions for the body tub sometime this afternoon, but I would strongly recommend a van.

It's possible that earlier MX-5 based cars had a seperate pedal box, more in keeping with the Vortx RT+, but the later ones have it as part of the chassis.

View User's Profile View All Posts By User U2U Member
l5tuy

posted on 15/7/16 at 08:32 AM Reply With Quote
I would advise a van, as there is alot of bodywork (tub, arches, scuttle, bonnet) which take up rrom, you then have alot of parts. For ref I used a VW crafter LWB, and although this was big the kit filled maybe 75% of it.

As for the company, my experience is similiar to Mick. it seems to be standard that they send out kits with parts missing (maybe due to availability at time of supplying kit, i don;t know), i've also had a few incorrect parts. To be fair they have rectified when questioned and I usually recieve things within a day or 2 (with the exception of exhuast, which took a while).

I can;t say if this is any better or worse than another manufacture as this is my first build, however I have seen things on here regarding other manufactures that are similiar eperiences.

Stu

View User's Profile View All Posts By User U2U Member
jim87

posted on 15/7/16 at 11:32 AM Reply With Quote
Tub is at least 10ft long, by about 3 wide at the back. I suppose you could mount/tape it to the chassis and put that the roof rack, but I'm not sure I'd like to !

I filled a LWB van up too when I picked it up.

Mine did have a separate pedal box, but that was mid-2013

View User's Profile View All Posts By User U2U Member
micksalt

posted on 12/10/16 at 10:16 AM Reply With Quote
quote:
Originally posted by Slimy38
The 1.6 and 1.8 diffs are slightly different size, about an inch. I wonder whether they've done the spacer thing so you can use either diff without it being out of position?


Ok, I have the 1.8 diff and still have the same spacing issue. How very odd

View User's Profile View All Posts By User U2U Member
sdh2903

posted on 12/10/16 at 10:28 AM Reply With Quote
Do you need some spacers? I had some made but obviously never used.
View User's Profile View All Posts By User U2U Member
micksalt

posted on 12/10/16 at 10:45 AM Reply With Quote
quote:
Originally posted by sdh2903
Do you need some spacers? I had some made but obviously never used.


What sort of thickness are they? I need to take a more precise measurement of mine, but I swear it looks more like 15 mm rather than 20 mm. It doesn't help that the front mount is at an ever-so-slight angle, so the spacing is slightly diifferent on each side if I tighten the front up properly.

View User's Profile View All Posts By User U2U Member
