Air filters for bike carbs
I have just fitted some ZX9R bike carbs to my 2lt Pinto on a Tiger Supercat (to replace twin 45 webers) but do not have much room for air filters.
They came with a Pipercross sausage filter, but to fit this would mean cutting an enormous hole in the bonnet. The quick release fixings on the
backplate would also be a safety hazard as the protude higher than the filter.
Any ideas on a suitable performance filter that would fit, or photos of air box designs would be handy
|
|
|
|
|
r1_pete
|
| posted on 27/1/09 at 07:58 AM |
|
|
Here's my effort:

zzr1100 race can airbox
|
|
|
Flamez
|
| posted on 27/1/09 at 08:38 AM |
|
|
I am currently trying to source an airbox for a MAC with a ZX10R. My main two limitations are;
Only about 120mm clearance at the lowest point and I don't want to cut the bonnet
And the two centre trumpets are 100mm high.
I am considering a custom airbox, how much would the performance be affected if I removed the two centre trumpets and replaced them with the flatter
outside trumpets or removed the trumpets altogether.?
my build mac1motorsports
|
|
|
David Jenkins
|
| posted on 27/1/09 at 08:44 AM |
|
|
Here's my DIY effort:
The front is covered with genuine Pipercross foam.
|
|
|
r1_pete
|
| posted on 27/1/09 at 08:46 AM |
|
|
You'd be ok replacing the trumpets with the shorter outer ones, the difference would be inpercievable, don't omit them, it will cause
turbulence in the intake.
IIRC there should be 1.5 X the carb intake bore clearence between the end of the trumpet and the airbix lid.
|
|
|
jacko
|
| posted on 27/1/09 at 09:42 AM |
|
|

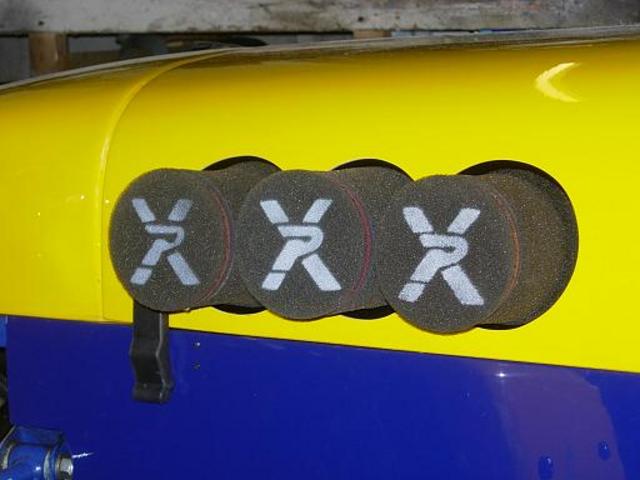

This is how i made mine
Jacko

triple filters 2
[img][/img]
|
|
|
idl1975
|
| posted on 27/1/09 at 12:15 PM |
|
|
Do you have space to run individual filters?
quote:
Originally posted by philhoward
I have just fitted some ZX9R bike carbs to my 2lt Pinto on a Tiger Supercat (to replace twin 45 webers) but do not have much room for air filters.
They came with a Pipercross sausage filter, but to fit this would mean cutting an enormous hole in the bonnet. The quick release fixings on the
backplate would also be a safety hazard as the protude higher than the filter.
Any ideas on a suitable performance filter that would fit, or photos of air box designs would be handy
|
|
|
bill132hotrod
|
| posted on 27/1/09 at 02:41 PM |
|
|
air filter /airbox
This is what i came up with and it works fine despite some negative views, no lack of power either, Airbox with 3" stainless pipe from low down
cone filter drawing cold air all the time.
PERSEVERANCE is the word of the week. Stick with it the results are SWEET.
|
|
|
will121
|
| posted on 27/1/09 at 07:13 PM |
|
|
mine is bit of reverse version of David's above. with filter at the top where i had space under my bonnet
[img] [/img]
|
|
|
FazerBob
|
| posted on 31/1/09 at 12:39 AM |
|
|
Filters
I went the route of seperate filters, though I did have to shorten the front one.
Cost was about £30 including postage from Thailand.
[Edited on 31/1/09 by FazerBob]
[Edited on 31/1/09 by FazerBob]
|
|
|
bigrich
|
| posted on 31/1/09 at 12:59 AM |
|
|
quote:
Originally posted by Flamez
I am currently trying to source an airbox for a MAC with a ZX10R. My main two limitations are;
Only about 120mm clearance at the lowest point and I don't want to cut the bonnet
And the two centre trumpets are 100mm high.
I am considering a custom airbox, how much would the performance be affected if I removed the two centre trumpets and replaced them with the flatter
outside trumpets or removed the trumpets altogether.?
.jpg)
.JPG)
