Whilst the weather's so cr4p...
...I decided to try and shut my engine up for trackday noise reasons, by making an airbox. Never done any fibreglassing before, so thought I'd
give it a go.
Since I'm only making one, I didn't want to do the whole buck/mold/item thing, so decided to have a go at a lost foam method.
So, first I carved out a shape in polystyrene and stuffed a mustard jar in the end: -

1
Then covered it in masking tape: -

2
Made the dining room stink with a layer of glass: -

3

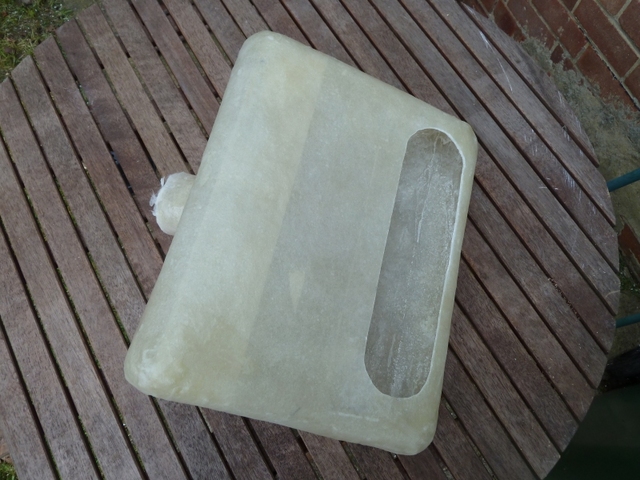

Then melted the polystyrene out with cellulose thinners and soaked the masking tape away. Then another layer of glass (actually, tissue) and a hole
cut: -

5
Offered up my original TTS back-plate for mounting: -

Description
Some more polystyrene and masking tape to allow making some mounts: -

Description
The completed mounts: -

Description
The completed box after trimming and another coat of resin inside to fix a couple of blemishes where the initial lay hadn't soaked through: -

Description

Description

Description
And in the engine bay: -

Description

Description
The bonnet does go on, but does "touch" the box. I'll probably stick a thin layer of rubber under the bonnet to stop
chafage/vibration.
And that's it - my first fibreglass "thing". Not had a chance to road test it yet, but for noise purposes it passes the
"blip" test in the garage and is much quieter.
Quite pleased overall. Hopeful it won't affect the performance - gone for "big volume" rather than trying to tune with resonance so
hoping it'll be no worse than the original sausage filter. I will be running a cold air hose too to keep the air round the filter cool.
Only thing is the outside isn't perfectly smooth, so "dressing" it would need a few mm filler in places where the top has overlapped
the sides. Will be sticking with function over form for now. Might dress it over next winter if I get bored of beige, but that's adding weight
- can't be having that
|
|
|
|
|
