Author: Subject: Ford Type9 spacer drawing
TurboWood

posted on 15/7/15 at 05:26 AM Reply With Quote
Ford Type9 spacer drawing

Hi Gents,
I'm working on a 7 and need a spacer for my transmission. I've searched and know there are a few options out there, but the easiest part (requires less custom work) is the 30mm spacer from caterham. Unfortunately I cannot find any anywhere.

Does anyone have a drawing or the critical dimensions that I could make drawing from? This is for the Ford type 9 transmission. I would happily buy a used one if anyone has one sitting around.

Thanks,
Daniel

View User's Profile View All Posts By User U2U Member
rusty nuts

posted on 15/7/15 at 07:00 AM Reply With Quote
Retro ford RWDmotorsport or use the search facility on here
View User's Profile View All Posts By User U2U Member
Paul Turner

posted on 15/7/15 at 07:56 AM Reply With Quote
From memory off the shelf the RWD one is thinner but they will make one to the full 30mm if you ask.

Have you tried a wanted in the Caterham forum?

View User's Profile E-Mail User View All Posts By User U2U Member
TurboWood

posted on 15/7/15 at 01:50 PM Reply With Quote
Thanks for the help guys. I've sent some notes based on your suggestion.

Daniel

View User's Profile View All Posts By User U2U Member
owelly

posted on 16/7/15 at 01:31 PM Reply With Quote

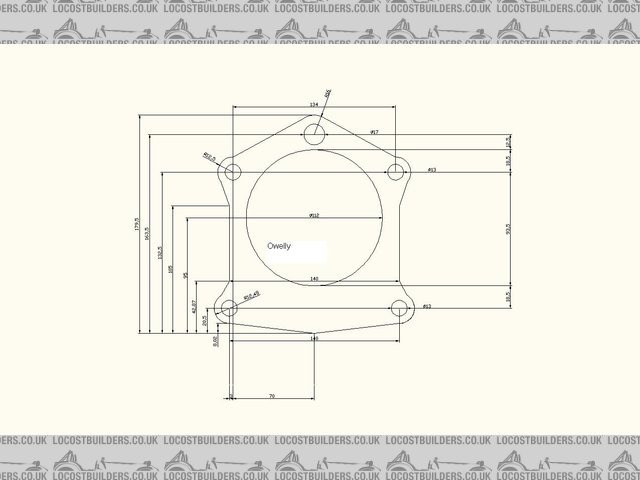

I took these measurements when I made my spacer. I accept no responsibility if they are all wrong but it seemed to work for my purpose!!
Type9 flange dims
Type9 flange dims






http://www.ppcmag.co.uk

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member
Benzo

posted on 2/12/19 at 11:27 AM Reply With Quote
quote:
Originally posted by owelly
I took these measurements when I made my spacer. I accept no responsibility if they are all wrong but it seemed to work for my purpose!!
Type9 flange dims
Type9 flange dims



Hi,

Would anyone have same information as this in Higher resolution?

When I View or print I cannot read the dimensions.

Thanks

View User's Profile E-Mail User View All Posts By User U2U Member
theduck

posted on 2/12/19 at 11:36 AM Reply With Quote
quote:
Originally posted by Paul Turner
From memory off the shelf the RWD one is thinner but they will make one to the full 30mm if you ask.

Have you tried a wanted in the Caterham forum?


I tried that one some of the caterham groups, got banned almost instantly for not owning a caterham

View User's Profile View All Posts By User U2U Member
