Author: Subject: Duratec plumbing
tomduffield13

posted on 17/4/18 at 10:46 AM Reply With Quote
Duratec plumbing

After reading multiple threads on the issue, mostly contradicting.... I've just finished plumbing my duratec.... standard mechanical water pump, caterham parts stat, US Ranger Water outlet and rail. I'm after simplicity really.

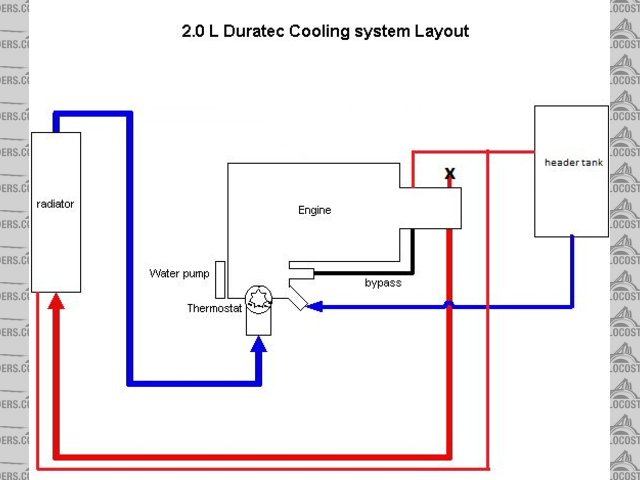

It's plumbed as per this diagram... (hopefully embedding this image will work)

Description
Description


I'm lost in diagrams all showing different solutions to the same problem, therefore anyone foresee any issues with this before I carry on?

Do I need a slight restrictor in the bypass to the header, just north of the tee to the back of the ranger outlet to try and force the loop?

[Edited on 17/4/18 by tomduffield13]

[Edited on 17/4/18 by tomduffield13]

View User's Profile E-Mail User View All Posts By User U2U Member
big-vee-twin

posted on 17/4/18 at 03:28 PM Reply With Quote
Most people with Duratec stick with the Ford arrangement because any other way doesn't seem to work as well.


[img] Description
Description
[/img]





Duratec Engine is fitted, MS2 Extra V3 is assembled and tested, engine running, car now built. IVA passed 26/02/2016

http://www.triangleltd.com

View User's Profile View All Posts By User U2U Member
tomduffield13

posted on 17/4/18 at 03:36 PM Reply With Quote
Thanks VeeTwin, isnít that effectively what Iíve got, just drawn slightly differently...

The bypass just doesnít go through the original unit on the rear...

Is this how Caterhamís are plumbed... they use a similar outlet rather than the original.

Any locations for diagrams in build manuals anywhere?

View User's Profile E-Mail User View All Posts By User U2U Member
big-vee-twin

posted on 17/4/18 at 04:01 PM Reply With Quote
Not quite, there are three connections at the back of the head, one to bypass, one to rad top, one to header.

You are teeing in the bypass to the header.

Ford have the bypass independent of any other connections.

Only way to find out is try it, but if there's no flow through the bypass the stat doesn't open.

[Edited on 17/4/18 by big-vee-twin]





Duratec Engine is fitted, MS2 Extra V3 is assembled and tested, engine running, car now built. IVA passed 26/02/2016

http://www.triangleltd.com

View User's Profile View All Posts By User U2U Member
tomduffield13

posted on 17/4/18 at 04:07 PM Reply With Quote
What if I kept the bypass independent and Tee off the rail to the header... that would ensure bypass flow.

Either way, youíre right, try it and see may be the best solution.
