Tool to form lip on coolant pipes

Does anyone know either who sells these, or what the offical name for them is so I can search?

This is a tool that can form a raised lip on thin wall tubing such as that used in cooling systems, to prevent a rubber pipe slipping off when secure with a jubilee clip etc. I've seen a picture of one ages ago, so I'm sure these do exist (and not just in my imagination!).

View User's Profile View All Posts By User U2U Member
Mike S

posted on 4/1/06 at 03:11 PM Reply With Quote
The ones that I have seen are in the Frost catalogue.

They call them Bead Form Tools.

Very nice but quite expensive (£400 ish), so only really an option if you are doing loads of them.

www.frost.co.uk

Alternatively, Car Builder Solutions will make them up for you.

Regards

Mike





There are more horses' asses in this world than there are horses

View User's Profile View All Posts By User U2U Member
MikeRJ

posted on 4/1/06 at 03:11 PM Reply With Quote
Just to answer myself they are called "tube beading tools" and they are very, very expensive.

A locost method is to modify the jaws of a pair of vice grips to put a groove in one and a matching lip on the other.

View User's Profile View All Posts By User U2U Member
zxrlocost

posted on 4/1/06 at 03:12 PM Reply With Quote
pop rivet the end of the pipe

hey presto

PLEASE NOTE: This user is a trader who has not signed up for the LocostBuilders registration scheme. If this post is advertising a commercial product or service, please report it by clicking here.

View User's Profile Visit User's Homepage View All Posts By User U2U Member
cidersurfer

posted on 4/1/06 at 03:36 PM Reply With Quote
As zxrlocost says rivets work a treat





shimming solid lifters is a job for a friend...

View User's Profile View All Posts By User U2U Member
Wadders

posted on 4/1/06 at 03:45 PM Reply With Quote
I think Rorty's bead roller plans include dies for
beading tube.

http://www.rorty-design.com/content/bead_roller_plans.htm

View User's Profile View All Posts By User U2U Member
Terrapin_racing

posted on 4/1/06 at 03:51 PM Reply With Quote

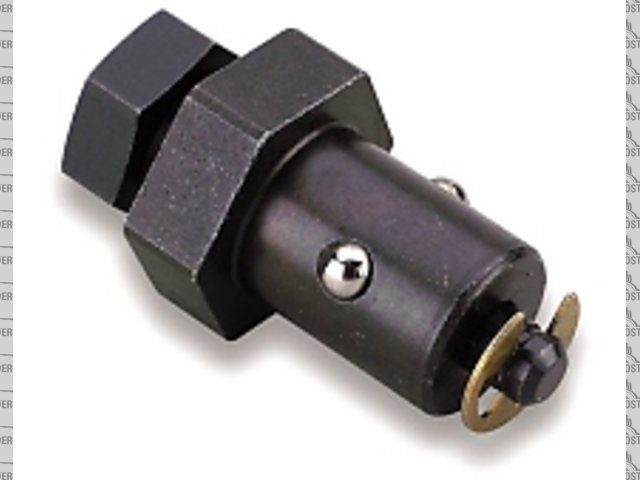

Earls tubing supplies in Uk do some cost effective tools to bead piping. I have one and it is excellent.

http://www.earls.co.uk

[Edited on 4/1/06 by Terrapin_racing]

[Edited on 4/1/06 by Terrapin_racing] Rescued attachment 00tube.jpg
Rescued attachment 00tube.jpg

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member
rusty nuts

posted on 4/1/06 at 03:52 PM Reply With Quote
Wasn't there a post on here a year or so ago about a home made beading tool ?
View User's Profile View All Posts By User U2U Member
Terrapin_racing

posted on 4/1/06 at 03:56 PM Reply With Quote

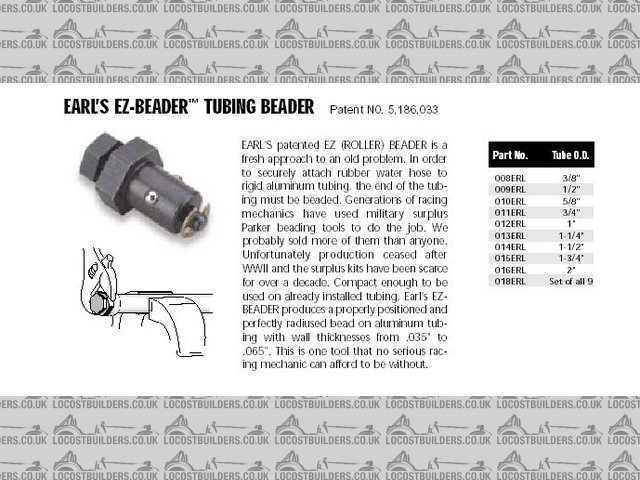

and further details from Earls catalogue

I have used very successfully on mild steel tube also

[Edited on 4/1/06 by Terrapin_racing] Rescued attachment 00tube1.jpg
Rescued attachment 00tube1.jpg

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member
MkIndy7

posted on 4/1/06 at 04:12 PM Reply With Quote
If its copper pipe, solder a socket on the end
View User's Profile E-Mail User View All Posts By User U2U Member
DaveFJ

posted on 4/1/06 at 04:34 PM Reply With Quote
IIRC someone suggested using a pair of mole grips....

weld a bead along the lower jaw and file a matching chunk out of the upper jaw. then just 'crimp' the pipe in stages all the way round.....





Dave

"In Support of Help the Heroes" - Always

View User's Profile Visit User's Homepage View All Posts By User U2U Member
Volvorsport

posted on 4/1/06 at 07:11 PM Reply With Quote
you could do what this turbobricker did !!

http://forums.turbobricks.com/showthread.php?t=58790&highlight=bead+maker





www.dbsmotorsport.co.uk
getting dirty under a bus

View User's Profile Visit User's Homepage View All Posts By User U2U Member
MikeR
Contributor






Posts 8600
Registered 25/5/02
Location Hinckley
Member Is Offline

Photo Archive Go!
Building: Slowcost since 2000, speeduino since 2020, Caterha

posted on 4/1/06 at 07:57 PM Reply With Quote
or you could contact allyfab, bryn is a great bloke with great prices and good service.

(yeah, i'm a happy customer)

View User's Profile View All Posts By User U2U Member
RazMan

posted on 4/1/06 at 08:55 PM Reply With Quote
A tip I picked up is to anneal the pipe first to reduce risk of cracking.

Molegrip dodge sounds feasable and I might try that.

Apparently you can get the same security by flaring the end out gradually with a small open ended spanner - not as pretty though.





Cheers,
Raz

When thinking outside the box doesn't work any more, it's time to build a new box

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member
givemethebighammer

posted on 4/1/06 at 09:35 PM Reply With Quote
I did mine this way

http://www.locostbuilders.co.uk/viewthread.php?tid=14691

View User's Profile View All Posts By User U2U Member
DaveFJ

posted on 5/1/06 at 10:09 AM Reply With Quote
excellent solution volvosport....

for those to lazy to follow the link......




surely one of our enterprising chaps on here could start knocking out the wheels on a lathe ? I'm sure they would sell....





Dave

"In Support of Help the Heroes" - Always

View User's Profile Visit User's Homepage View All Posts By User U2U Member
02GF74

posted on 5/1/06 at 10:40 AM Reply With Quote
clearly the two rollers are brought closer together by doing up the vice but how are they held to the vice jaws?

Now this has got me thinking - for those without a lathe, how about using some large penny washers with smaller ones for the recess welded to each other?

View User's Profile View All Posts By User U2U Member
RazMan

posted on 5/1/06 at 10:44 AM Reply With Quote
Drilled and tapped into the sides of the jaws or maybe welded?





Cheers,
Raz

When thinking outside the box doesn't work any more, it's time to build a new box

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member
rusty nuts

posted on 5/1/06 at 05:10 PM Reply With Quote
Might be worth using a couple ol lengths of angle iron to fit in vice jaws with a plate welded on the end drilled and tapped to take the bolts . quick and easy to fit into place . Think i'll try it out tomorrow if I get time.
