Opinions on my switch panel for SVA please
I've just covered my switch panel (which sits on the tunnel and meets the dash) and it occurred to me that the led lights might not be SVA
friendly. I have used 3mm foam under Alcantara, Savage switches and led indicators.
What do you think?

Rescued attachment Switch panel 1.jpg
Cheers,
Raz
When thinking outside the box doesn't work any more, it's time to build a new box
|
|
|
|
|
RazMan
|
| posted on 10/6/06 at 05:32 PM |
|
|
Here's a pic from the side to give you a better idea.

Rescued attachment Switch panel 2.jpg
Cheers,
Raz
When thinking outside the box doesn't work any more, it's time to build a new box
|
|
|
Guinness
|
| posted on 10/6/06 at 05:43 PM |
|
|
I think you'll be alright as "sharp edges" applies except where projection is less than 3.2mm from the panel.
So you could have very small spikes if you wanted!?!?
Even if they are close to 3.2mm I bet this reduces when you apply "light pressure".
Good luck with it, you really look to be doing a top quality job on the build.
HTH
Mike
|
|
|
john_p_b
|
| posted on 10/6/06 at 05:56 PM |
|
|
should be fine, my LED passed and that's mounted on to a standard plastic dash.
looks well smart by the way!
built a car, built a home, had a family. lost the family, lost the home, still got the car.
|
|
|
donut
|
| posted on 10/6/06 at 06:39 PM |
|
|
yeah looks ok to me... and very smart may i add!
Andy
When I die, I want to go peacefully like my Grandfather did, in his sleep -- not screaming, like the passengers in his car.
http://www.flickr.com/photos/andywest1/
|
|
|
piddy
|
| posted on 10/6/06 at 06:59 PM |
|
|
I thinks you will be fine.
the only thig I would say is the brake warning light has to have the correct symbol over the light. (excalmation mark inside a circle all in brackets)
|
|
|
RazMan
|
| posted on 10/6/06 at 07:18 PM |
|
|
quote:
Originally posted by piddy
I thinks you will be fine.
the only thig I would say is the brake warning light has to have the correct symbol over the light. (excalmation mark inside a circle all in brackets)
Isn't that what mine is then?
Cheers,
Raz
When thinking outside the box doesn't work any more, it's time to build a new box
|
|
|
DavidM
|
| posted on 10/6/06 at 07:33 PM |
|
|
Is that an ashtray at the bottom?
Proportion is Everything
|
|
|
RazMan
|
| posted on 10/6/06 at 10:23 PM |
|
|
quote:
Originally posted by DavidM
Is that an ashtray at the bottom?
That is the only storage area in the car! It is in fact a cubby hole for loose change etc. Ever tried getting into your jeans pocket for toll fees
when you are deep in a bucket seat with no room to move?
Thanks for all the positive comments guys - I will carry on and hope Mr SVA is as good as you lot
[Edited on 10-6-06 by RazMan]
Cheers,
Raz
When thinking outside the box doesn't work any more, it's time to build a new box
|
|
|
esn163
|
| posted on 11/6/06 at 08:11 AM |
|
|
That looks great  .
Switch layout looks vaguely familiar lol

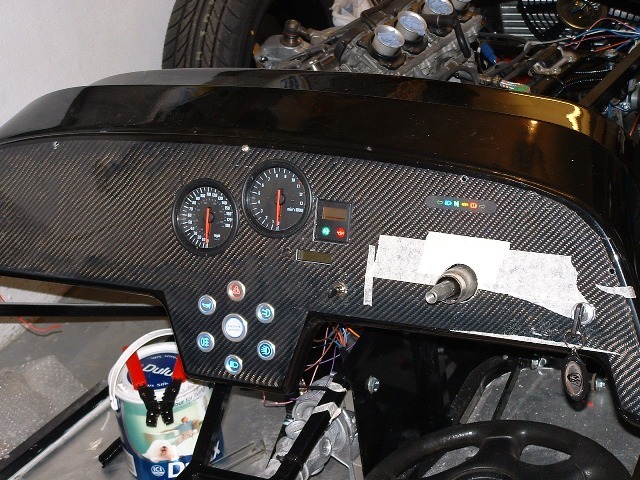

1st electrics test
LEDs look good, are they just going to be tell-tales for all the other switches?
Ed
[Edited on 11/6/06 by esn163]
Indy Build Photos
** Build pages **
Photo Bucket Pics
|
|
|
DIY Si
|
| posted on 11/6/06 at 08:19 AM |
|
|
That should pass. I think since it looks so good, the sva man may not quite be as strict with the radii anyway. From what I can gather, if the car
looks like you put loads of effort in, they may overlook some minor faults.
|
|
|
RazMan
|
| posted on 12/6/06 at 07:13 AM |
|
|
quote:
Originally posted by esn163
That looks great .
Switch layout looks vaguely familiar lol
Hey, great minds and all that
I was thinking about configuring the savage switches for dual brightness but when I found these blue 12v led's I thought they would be easier
(and more visible in daylight) as telltales although one or two will be dummies and are just there for symmetry.
Cheers,
Raz
When thinking outside the box doesn't work any more, it's time to build a new box
|
|
|
