Handbrake help
Trying to fit Hand brake and cable saw a picture on here recently but cant seem to find it,any help appreciated.
|
|
|
|
|
nick205
|
| posted on 11/4/18 at 08:13 AM |
|
|
What brakes and handbrake setup are you using?
Others may have used the same parts and be able to advise on how they did it.
|
|
|
martin62
|
| posted on 11/4/18 at 09:06 AM |
|
|
Handbrake help
Sorry about that. I am using Sierra Handbrake and cable, just trying to figure out how to attach the cable to the Handbrake and still have have some
adjustment
|
|
|
Slater
|
| posted on 11/4/18 at 10:34 AM |
|
|
Does this pic help?
Cable was cut and rejoined using 2 x U clamps. Also can adjust length with plastic nut on the outer sheath which is butted up against the rear
bulkhead. I will search for a pic of that too.
[img]

handbrake details 123
[/img]
ETA found the pic of the plastic nut adjuster...
[img]

handbrake adjustment 321
[/img]
[Edited on 11-4-18 by Slater]
[img]

hb adj 1234
[/img]
[Edited on 11-4-18 by Slater]
Why do they call Port Harcourt "The Garden City"?...... Becauase they can't spell Stramash.
|
|
|
nick205
|
| posted on 11/4/18 at 03:20 PM |
|
|
Same setup on my MK Indy. I did shorten the cable and clamp it back together with a drilled bolt (passed SVA fine like this as well):
[Edited on 11/4/18 by nick205]
|
|
|
big-vee-twin
|
| posted on 11/4/18 at 08:06 PM |
|
|
I have overall adjustment in the middle with left right balance on the two outer adjusters
[img]

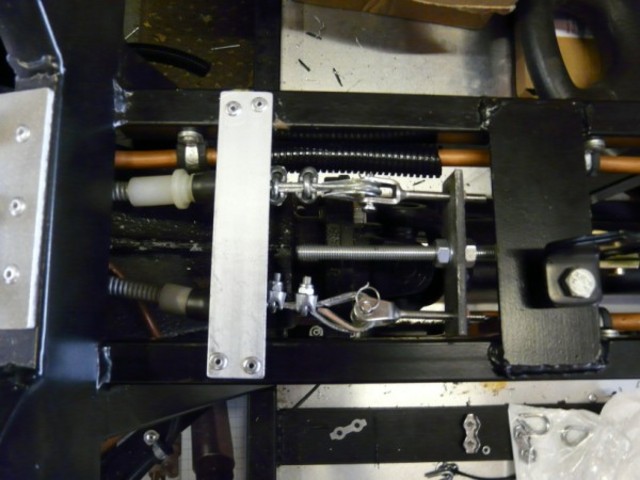

Fully adjustable handbrake
[/img]
Duratec Engine is fitted, MS2 Extra V3 is assembled and tested, engine running, car now built. IVA passed 26/02/2016
http://www.triangleltd.com
|
|
|
martin62
|
| posted on 11/4/18 at 08:34 PM |
|
|
Thanks for all the help hope to attack it tomorrow.
|
|
|
Angel Acevedo
|
| posted on 12/4/18 at 06:13 PM |
|
|
quote:
Originally posted by nick205
Same setup on my MK Indy. I did shorten the cable and clamp it back together with a drilled bolt (passed SVA fine like this as well):
[Edited on 11/4/18 by nick205]
Nyloc nuts require a couple of threads showing, Not that it would matter as once the nut undoes a little the pressure on the cable is released.
A better method would be threadlock (Although I am sure considering the tidyness of your build that you did so)
Beware of what you wish.. for it may come true....
|
|
|
nick205
|
| posted on 13/4/18 at 08:33 AM |
|
|
quote:
Originally posted by Angel Acevedo
quote:
Originally posted by nick205
Same setup on my MK Indy. I did shorten the cable and clamp it back together with a drilled bolt (passed SVA fine like this as well):
[Edited on 11/4/18 by nick205]
Nyloc nuts require a couple of threads showing, Not that it would matter as once the nut undoes a little the pressure on the cable is released.
A better method would be threadlock (Although I am sure considering the tidyness of your build that you did so)
You're correct nylon lock nuts should have 2-3 threads of the bolt proud of the nylon section. Probably not the best photo to have shown, but
the one that was in my archive. IIRC I fitted a shallower nylon locknut in the actual build prior to the SVA inspection.
|
|
|
