Author: Subject: Elite IL200 6 speed sequential gearbox, Ford Type 9 fitment
se7ensport

posted on 30/5/22 at 07:12 PM Reply With Quote
Elite IL200 6 speed sequential gearbox, Ford Type 9 fitment

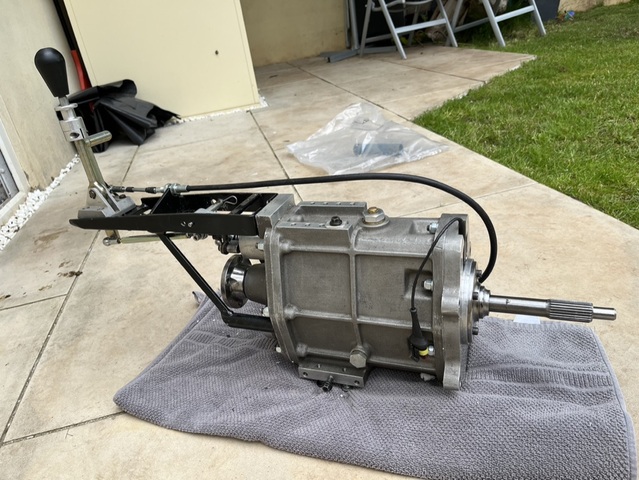

Elite IL 200 6 speed sequential gearbox

Just back from Elite following a full strip, inspect and rebuild.

22KG dry weight

Upgraded helical cut gears

Fully flat & paddle shift compatible

Type 9 Mounting face 270 Nm (200 ft lbs) Maximum Torque Capacity.

Sequential gear selection, 6 forward plus reverse with pull neutral/reverse lockout.

Gearbox front face to gear-stick length adjustable between 550mm and 610mm.

Digital gear indicator system including potentiometer, wiring loom and display box.

The gearbox utilises a drop gear system to quickly alter your overall gearing without needing to change diff, currently in Option 1 configuration (see picture for ratios and option 2 gearing), other drop gears available from Elite.

Option 1

1st Gear 2.386

2nd Gear 1.636

3rd Gear 1.299

4th Gear 1.064

5th Gear 0.900

6th Gear 0.783

£3,800 OVNO.


It's located in Bristol, happy to ship.

IL200
IL200


IL200 1
IL200 1


IL200 2
IL200 2


IL200 3
IL200 3


[Edited on 30/5/22 by se7ensport]

Is this a TRADE ADVERTISEMENT?? Click HERE to report it!

View User's Profile View All Posts By User U2U Member
se7ensport

posted on 2/6/22 at 04:05 PM Reply With Quote
Price reduced to £3500.
View User's Profile View All Posts By User U2U Member
se7ensport

posted on 10/6/22 at 03:47 PM Reply With Quote
Sold.
