TPS connector for CBR carbs
Wanted, the male part of the TPS plug that I think should be connected to the bike loom, to connect to my FX model CBR600 carbs.
Many thanks,
Mark
1.6 Raw Super6 sold
|
|
|
|
|
big_wasa
|
| posted on 28/2/09 at 03:59 PM |
|
|
Or just cut it of and get a three pin amp seal plug ?
Bike plugs are usually hard to get.
|
|
|
McLannahan
|
| posted on 28/2/09 at 04:27 PM |
|
|
The female is on my CBR 900 loom for the TPS. If it's that you need I can get one of my loom if you like - just butchering it as we speak.
I'll post a photo but it's male attached to the TPS and female on the loom.
Loom end on right - and TPS connection from engine on left.

CBR 900 TBS
[Edited on 28/2/09 by McLannahan]
|
|
|
David Jenkins
|
| posted on 28/2/09 at 04:33 PM |
|
|
If you find a source, let me know - I've been looking for almost a year. Scarce as hen's teeth.
I ended up with small blade connectors pushed on, and glued heat-shrink tubing over that to keep them in place. A few inches down the wire I fitted a
conventional 3-way plug and socket.
|
|
|
Andi
|
| posted on 28/2/09 at 04:36 PM |
|
|
Try this site
HTH
http://www.dataspares.com/3way.html
[Edited on 28/2/09 by Andi]
|
|
|
mad-butcher
|
| posted on 28/2/09 at 05:06 PM |
|
|
many thanks for the link
tony
|
|
|
tul214
|
| posted on 1/3/09 at 02:46 PM |
|
|
Thanks for the link

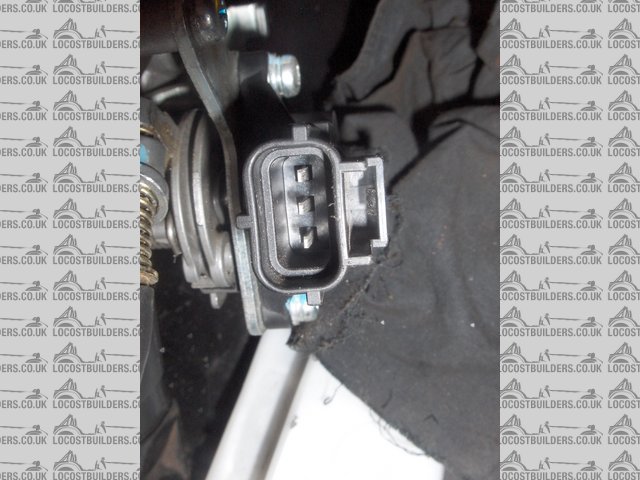

My tps looks like this...

CBR600 tps
1.6 Raw Super6 sold
|
|
|
Andi
|
| posted on 1/3/09 at 07:06 PM |
|
|
I think it would be best to ring dataspares and tell them what you need, just to make sure you get it right.
|
|
|
tul214
|
| posted on 2/3/09 at 10:15 AM |
|
|
For reference....I spoke to Dataspares but they are 'not sure'!!
They did suggest the C210 might fit but at £3.26 + £8 delivery! + VAT, some mini spade terminals and heatshrink looks more attractive!
Mark
1.6 Raw Super6 sold
|
|
|
tul214
|
| posted on 14/3/09 at 03:45 PM |
|
|
Got one....

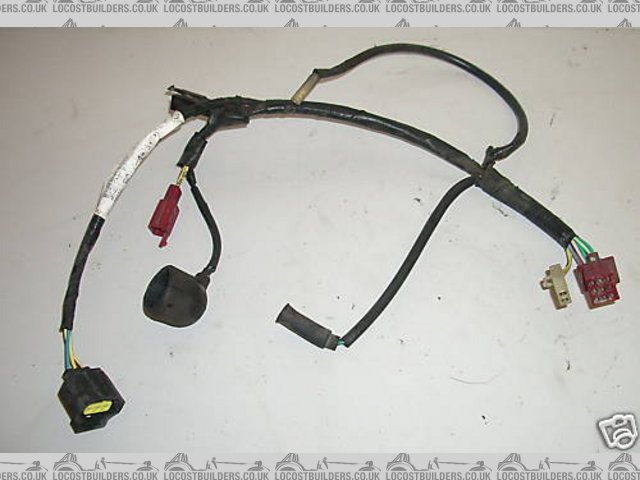

Description
Its the black and yellow plug towards the left. It is found on the 'engine loom' not the main bike loom and cost £10
1.6 Raw Super6 sold
|
|
|
David Jenkins
|
| posted on 14/3/09 at 04:19 PM |
|
|
I'm jealous!
Useful to know to which bit of the loom it belongs - makes it easier to ebay...
cheers!
|
|
|
David Jenkins
|
| posted on 19/3/09 at 10:44 PM |
|
|
Whoopie!
I've just received one from an ebay bike breaker too!
I've used 3 mini-spade connectors up until now, and it's really grated on my nerves. I like to do things proper...
That'll be a Saturday morning job, and it'll be an excuse to test it shortly after it's fitted...
|
|
|
tul214
|
| posted on 20/3/09 at 05:55 AM |
|
|
David,
As you seem to have done all of the hard work and I am just copying based on your www site, I am presuming you have worked out which of the terminals
are which on the carb end??
Based on the pic above of the TPS connector could you label them up for everyones (mine) future reference?
Cheers Mark.
[Edited on 20/3/09 by tul214]
1.6 Raw Super6 sold
|
|
|
David Jenkins
|
| posted on 20/3/09 at 08:20 PM |
|
|
Your wish is my command!
I've shifted the answer to 'Electrical'
Here
|
|
|
