2cv
|
| posted on 7/9/10 at 10:52 AM |
|
|
Bending Box Section
This is a continuation of Raz's thread in the Bodywork section. see;
http://www.locostbuilders.co.uk/forum/4/viewthread.php?tid=142269

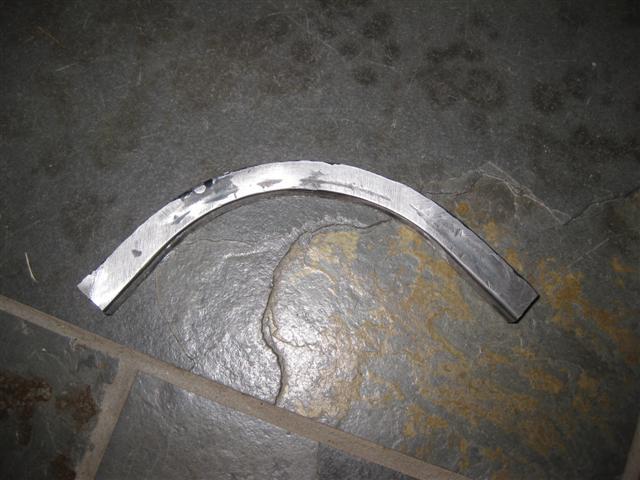

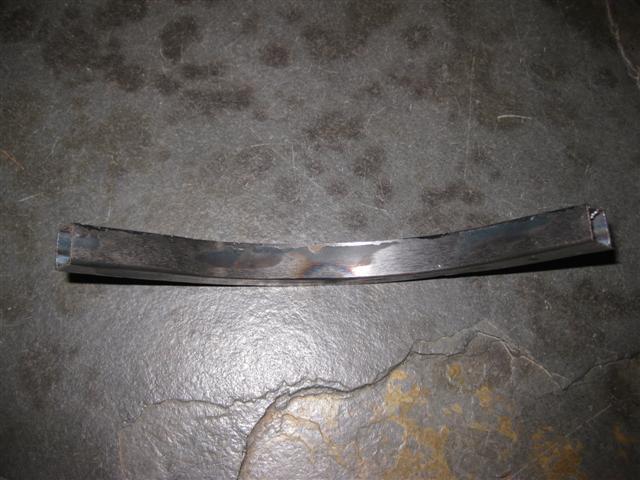

Having rectified my gaff over the different radii of the mating pieces it all went together quite well and it has, I believe, proved the technique
and the belief that it can be achieved with only a piece of plywood and a hammer.
[img]

Description
[/img]

Description
[img]

Description
[/img]
[Edited on 7/9/10 by 2cv]
[Edited on 8/9/10 by 2cv]
|
|
|
|
|
locoboy
|
| posted on 7/9/10 at 01:34 PM |
|
|
More detail on how you did it please
ATB
Locoboy
|
|
|
mattyc
|
| posted on 7/9/10 at 01:42 PM |
|
|
I'd guess that has been done by cutting slits down three of the sides and welded back together. Only a guess tho because of the griding on it.
|
|
|
blakep82
|
| posted on 7/9/10 at 02:17 PM |
|
|
quote:
Originally posted by mattyc
I'd guess that has been done by cutting slits down three of the sides and welded back together. Only a guess tho because of the griding on it.
"it can be achieved with only a piece of plywood and a hammer"
looks like its been bent round a corner cut out of plywood
________________________
IVA manual link http://www.businesslink.gov.uk/bdotg/action/detail?type=RESOURCES&itemId=1081997083
don't write OT on a new thread title, you're creating the topic, everything you write is very much ON topic!
|
|
|
2cv
|
| posted on 7/9/10 at 03:33 PM |
|
|
It was Raz's post in the Bodywork section that started this off and I've put some pictures on that thread to illustrate the technique. This
will take you there;
http://www.locostbuilders.co.uk/forum/4/viewthread.php?tid=142269&page=2
He was asking for a 60 degree radius and 15mm square tube.

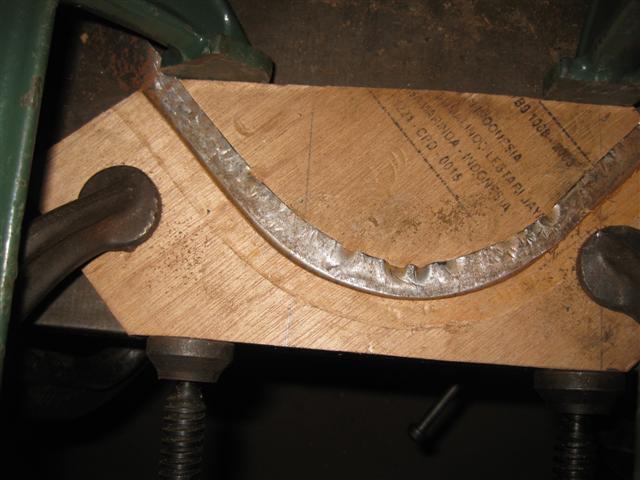

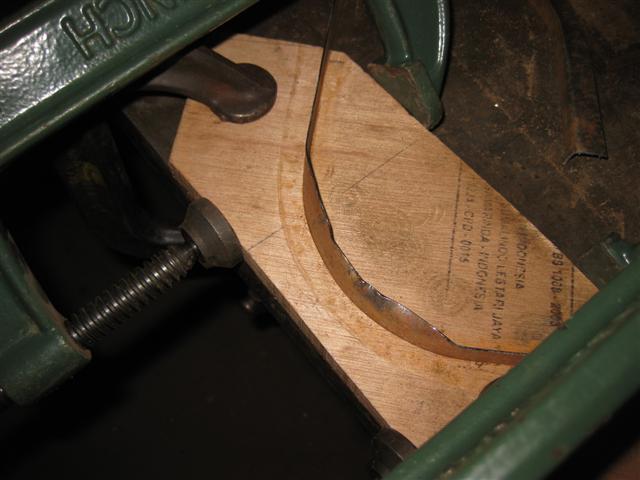

I drew the required radius on a piece of marine ply and cut it to the line. I then cut a strip of mild steel 24mm wide and clamped it between the two
pieces of ply as shown in the photo. It was tapped over, stretching it, to form an L section, this being the first half of the box.
I then cut another pattern with the correct radius to mate with the first and with the steel clamped as before, tapped it over but this tme shrinking.
Any little puckers can be removed by careful hammering against a flat surface.

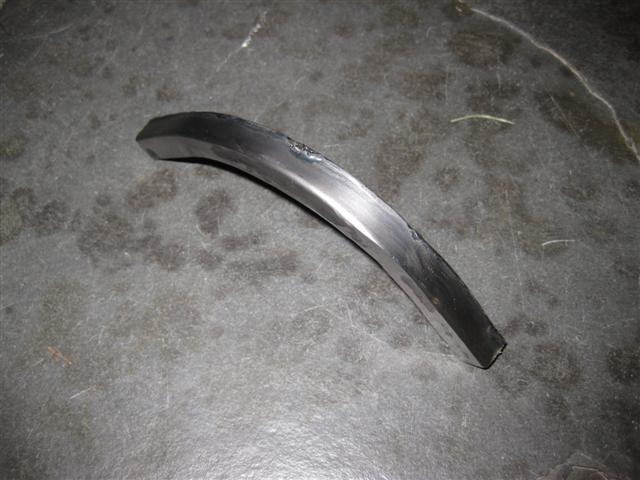

The two pieces were fusion welded (no filler) using TIG.
I've just had a go at this to show how a bend of the required radius can be made quite easily using just simple tools that we have available. I
only wanted to prove the technique and show that it works rather than spend a lot more time to produce a top quality test piece. I hope this will
encourage Raz to take the Locost route.
[img]

Description
[/img]
[img]

Description
[/img]
[img]

Description
[/img]
[img]

Description
[/img]
[Edited on 8/9/10 by 2cv]
|
|
|
RazMan
|
| posted on 7/9/10 at 03:34 PM |
|
|
I am really impressed by your ingenuity and diligence John! You started out with flat sheet, hammering it to shape around a plywood form and then
welding the two sections together - really neat job!
Cheers,
Raz
When thinking outside the box doesn't work any more, it's time to build a new box
|
|
|
