Photos of Cortina hub/wheel arch Mount plz
Hi guys,
I'm after a picture of how a wheel arch mount is attached to the hub, I have turned mine in a million different ways and can;t get my head round
it.
I can only assume I need some sort of inch long spacers or something...
a picture would be most helpful if anyone would be kind enough?
Thanks!
|
|
|
|
|
blakep82
|
| posted on 14/3/09 at 08:28 PM |
|
|
if i remember rightly, (and remember i've never built a 7, and had cycle wings) but i'm sure you use the brake caliper bolts, and the top
ball joint nut?
________________________
IVA manual link http://www.businesslink.gov.uk/bdotg/action/detail?type=RESOURCES&itemId=1081997083
don't write OT on a new thread title, you're creating the topic, everything you write is very much ON topic!
|
|
|
Humbug
|
| posted on 14/3/09 at 08:51 PM |
|
|
I used to have a Westfield SE and the stays were mounted like blakep82 says, but on my ST and lots of other cars I've seen with Cortina hubs the
stays are mounted to the three unused dust cover bolt holes with longer bots and spacers. Here's a pic of mine - they are a bit different from
the nomal design but fit in the same way

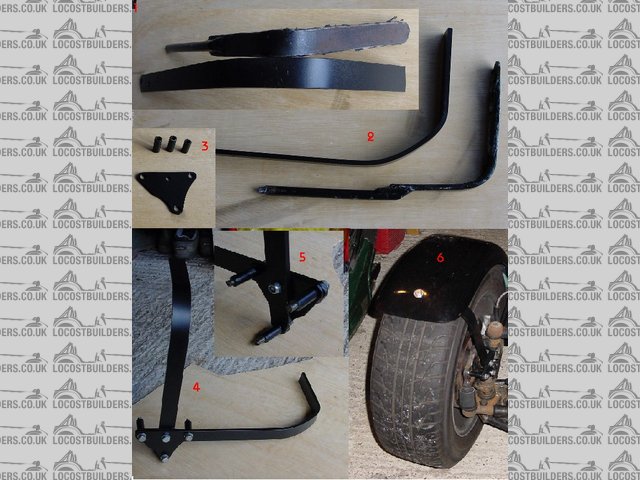

Rescued attachment 2006-11-26 New cycle wing brackets.jpg
|
|
|
andylancaster3000
|
| posted on 14/3/09 at 08:58 PM |
|
|
Ours are totally tubular. They worked out very well and are very stiff. We also machined the flats into the upright around the holes so that the stay
could be monuted squarely.
[Edited on 14/3/09 by andylancaster3000]
|
|
|
Dangle_kt
|
| posted on 14/3/09 at 09:10 PM |
|
|
Thanks humbug, I have exactly that shaped backplate as shown in picture 3, what I dont have is the any spacers or bolts.... like the rest shown in
picture 3
you wouldn't have any dims by any chance? or even the bolt size and pitch would be a big help - I could just use washers to mock up the spacers
for now, held together with a little tape for ease.
Thanks in advance!
quote:
Originally posted by Humbug
I used to have a Westfield SE and the stays were mounted like blakep82 says, but on my ST and lots of other cars I've seen with Cortina hubs the
stays are mounted to the three unused dust cover bolt holes with longer bots and spacers. Here's a pic of mine - they are a bit different from
the nomal design but fit in the same way
|
|
|
Humbug
|
| posted on 14/3/09 at 09:44 PM |
|
|
I think the bolts are standard M8, but I had to clean out the holes with a tap to get the bolts to go in! The length of the spacers will depend on the
offset of your sheels - mine are about 25-30mm.
To fix them in I had:
bolt head
washer
triangle mounting plate
washer
spacer made from steel tubing
washer
|
|
|
Dangle_kt
|
| posted on 14/3/09 at 10:38 PM |
|
|
thanks humbug - that is a big help.
cheers
|
|
|
x_flow57
|
| posted on 14/3/09 at 10:41 PM |
|
|
Cant explain in words (dam french red )
.jpg)

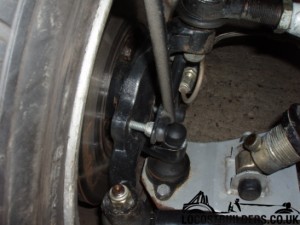

Hope you can see the bolt (SVA cover yet to fall off) and the nylock, much easier than tubes etc and easily adjustable.
HTH
Nick
|
|
|
twybrow
|
| posted on 14/3/09 at 11:23 PM |
|
|
I used a washer, and an oversized nut (10mm?) as a spacer. Seemed perfect when fitting....
|
|
|
andrew.carwithen
|
| posted on 15/3/09 at 08:17 AM |
|
|
Like others, I had to make three spacers per side out of 10mm steel tube. Note: in order to get even spacing between stays and tyre sidewall, they
were of different lengths.
I bought the tube from my local B&Q.

Rescued attachment sva3 009 small.JPG
|
|
|
andrew.carwithen
|
| posted on 15/3/09 at 08:30 AM |
|
|
another view...

Rescued attachment sva3 010 small.JPG
|
|
|
