I'll throw this one out there because I'm stuck. But I'd like to say thanks to SteveWallace for his patience when asking him about
his TC.
I'd like to make an MGTC, an authentic car is £25,000 which leaves me about £24,000 short. Even a resto project is £10,000 upwards and the
price of spare parts (like a front wing or body tub) is insane. I've made 1:32 scale model cars that run on a Scalextric track, how much harder
can a real car be...?
Originally I thought about using a Bedford Rascal running gear but they only have a chassis from behind the cab, so the front part of the chassis with
engine mounts would have to be designed and made by me anyway. The advantage of this base vehicle is the size - an old MG is a very narrow vehicle
and I don't want to use something that looks too wide, I'd like it as authentic as possible.
Plan B is to use an MG Midget as donor vehicle, it's pretty much the right track width, you can get hubs for wire wheels and if I can possibly
sell some of these to cover my costs then an MG based on an MG would sit right with customers I think. The part that I'm stuck on is how to
make the bodyshell.
I've got no experience with fibreglass other than owning a couple of fibreglass cars in the past. I've read a few articles, watched a bit
on youtube and the more I see the more I think the chances of me achieving a good product in my garage is slim. You need to take a mould from an
original but my cunning plan is to 3D scan a real car then get the buck machined using blue foam. However the machining something that size
isn't cheap either.
I then wondered about getting the parts done as vacuum forms, I visited a potential supplier last week and again the tooling cost is several thousand
pounds just for a single front wing.
If I get a frame made (like the ash frame on an original) it's possible to use sheet plastic, but it should fold over itself as you can see here
along the top of the door and the rear quarter panel, which plastic wouldn't be good for.
Maybe thin sheet metal like the original? I really want something that can be made with minimal, or cheap tooling.
The other tricky area is the scuttle - the panel between the windscreen and the bonnet. Everything else has a curve in one direction but this has a
complex curve with the double bubble over the dashboard, is there any way to make this other than GRP?
Any words of advice you can give me would be appreciated! My day job is a mechanical design engineer so I've got 3D CAD skills and tools,
I've got an amateur's working knowledge on chassis and suspension designs and I've got some local suppliers who could make a decent
part in sheet metal and some machining.
IIRC the body was intended to be made from plans out of plywood skinned in thin ally sheet, possibly on a triumph herald chassis ??
I'm after something authentic, those replicas are always too wide and the wheels are too small. But the idea of how they are made is great,
thank you. I've ordered a set of plans to see if that helps.
quote:Originally posted by coozer
Why not just build a Jaguar SS?
Because I don't want one, Suffolk Sports Cars already make one, a replica SS is even more expensive than a real MG and if I built one from
scratch I'd have exactly the same difficulties I'm having with an MG.
Photo Archive
Building: Sold turboblade, back to tin tops
posted on 11/8/15 at 09:21 AM
Herald chassis is a good shout IMHO as you can rebody and keep away from IVA saving £££
The body looks like it is mostly straight panels with single plane curves so you need to construct a frame (tube or ash) and dress it with an
aluminium skin, wheel arches will be your biggest problem, have a look at alternatives you can build out or bite the bullet and get the correct items.
Building accurate replicas is a nightmare, all too often they fall down on the expensive details.
If you want it to look identical, I suspect the cheapest route would be to spend the money and buy one. Defeatest I know, but it will only appreciate
in value.
If you want a kit, there used to be plenty of plans out there for building a variety of 30's style cars, often ali or even cloth over ply. But
starting from scratch is mighty hard and usually rather expensive.....
Photo Archive
Building: Finished Locost, now fitting type 9 box
posted on 11/8/15 at 11:19 AM
Do a search for JC Midge. I built one but on 13" wheels. With 15's they can, with a bit of ingenuity with the body look the dogs bits.
They come up occasionally on ebay at a reasonable price and pre registered which would save IVA.
That’s the one I found, thank you. I’ve ordered a set of plans to see if the bodywork construction can help.
quote:Originally posted by mark chandler
Herald chassis is a good shout IMHO as you can rebody and keep away from IVA saving £££
The body looks like it is mostly straight panels with single plane curves so you need to construct a frame (tube or ash) and dress it with an
aluminium skin, wheel arches will be your biggest problem, have a look at alternatives you can build out or bite the bullet and get the correct items.
The Herald is too wide, plus I’ve heard that you either like Triumphs or MGs so I suppose the world stops turning if you make one out of another?
It’s like the rusty car version of nuclear fusion.
Agree about mostly single plane curves. Except for the scuttle and wings it “should be” straightforward.
Yes, but that only gives me a chassis and I’d have exactly the same problems trying to make a body.
quote:Originally posted by David Jenkins
Well, here is what Ron Champion was working on while he worked at Oundle School... he was going to write a contruction book for it...
True to form, he didn't finish the book (if he ever started!)
That looks like what I need. Do you have any “in progress” photos of it?
quote:Originally posted by cliftyhanger
Building accurate replicas is a nightmare, all too often they fall down on the expensive details.
If you want it to look identical, I suspect the cheapest route would be to spend the money and buy one. Defeatest I know, but it will only appreciate
in value.
If you want a kit, there used to be plenty of plans out there for building a variety of 30's style cars, often ali or even cloth over ply. But
starting from scratch is mighty hard and usually rather expensive.....
Your defeatist answer is the one that keeps staring me in the face, I know you’re correct. But if it was made without a roof and just with aero
screens then the only expensive detail would be wheels and tyres, that’s not too terrible a situation. Hopefully the Burlington plans earlier will
give me a starting place for a wood frame and thin metal, perhaps I need to see how the original MGs were made too – that was a similar construction
so I wonder if most of the bodywork sheet metal was only blanked rather than had form tooling.
quote:Originally posted by myke pocock
Do a search for JC Midge. I built one but on 13" wheels. With 15's they can, with a bit of ingenuity with the body look the dogs bits.
They come up occasionally on ebay at a reasonable price and pre registered which would save IVA.
You might want to check out the "how its made" episode on building wood framed sports cars (Morgan), it gives a bit of insight into
building the coachwork: Morgan
For TC's, most of the body panels (in steel) are more or less single curve though they do wrap around the timbers at the top and bottom. The
scuttle panel is the tough bit, and may prove to be easier to build in fiberglass. Wood kits are available from the usual suppliers if you're
wanting an exact replica. The chassis is another story, they were constructed from channel and aren't that stiff. If I were to build a copy,
I would opt for rectangular hollow section, though the front of the chassis poses a problem if you're wanting to use a solid axle (as per the
original).
I've often toyed with the idea of building an MG Q-type style car for myself, but finding a suitable front axle and the cost of either 16"
or 19" wire wheels has kept the idea an idea. I already have an MG Midget axle, gearbox and a Coventry Climax 750cc engine that would be a
perfect fit in a smaller pre-war style sports car.
Photo Archive
Building: It is an ex-Locost - it has gone to the IOW!
posted on 11/8/15 at 03:43 PM
quote:Originally posted by choc-ice
quote:Originally posted by David Jenkins

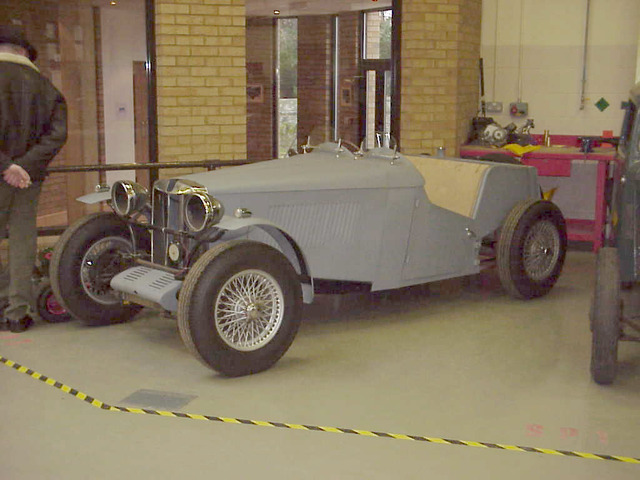

Well, here is what Ron Champion was working on while he worked at Oundle School... he was going to write a contruction book for it...
True to form, he didn't finish the book (if he ever started!)
That looks like what I need. Do you have any “in progress” photos of it?
No - that's all I ever saw of it. I went on a trip to visit the school workshops with a load of other Locost builders and there were lots of
part-made cars around, including that one. There was some discussion afterwards, but it disappeared - I think SVA might have had something to do with
it.
Going for some genuine parts is a stroke of genius - if the scuttle top is the most difficult part then actually £350 for a metal one isn't a
bad way to get out of the problem.
I remember seeing that book around old book shops but the www thinks they're £60 now! I'll keep an eye on ebay for one.
I found this too, which seems to show the whole thing can be made in about half an hour, or at least a TD can.
Photo Archive
Building: It is an ex-Locost - it has gone to the IOW!
posted on 16/8/15 at 09:26 AM
That video just makes me think that I would NOT want to try and make an MG TC body! So many forming and building jigs, plus I'd bet that the
ash for the frame is hard to get in decent quality, and horribly expensive. What brought it home was when he fitted the steel side panel to the
frame, and it just needed the odd tap with a mallet to move it into place perfectly.
Making a replica at home would be non-trivial, and I'm someone who loves woodwork! I will admit to disliking panel beating though, mostly
because I'm never happy with the quality I'm able to produce. There's a bloke in Colchester who runs panel beating courses for
amateur car restorers and I've often been tempted as it's not too far from me, but it's a skill I'd rarely use so would lose
the benefit quite quickly.
Agreed, you'd be there forever making it that way. But that was from a time when materials were expensive but labour was cheap, nowadays
it's the other way around.
If you had a frame that did the whole of one side, formed to the body tub's curve, then it wouldn't be too bad to put thin metal over it?
You're right that the details need to work, if I see another vintage car on 14" steels with wire wheel hubcaps I think I'll have a
nosebleed. But if I can get the proportions right and the major details I think it'll look good. A bit like Suffolk Sports Cars do with their
SS100 but for a more affordable price.
The JBA Falcon is too wide and the door line is too high. It's not a bad effort (he says, having achieved nothing so far) but I'd like to
do better.
Wow, has this really been sitting in the doldrums for all this time?
Well, in my defence we had a house extension done and I didn't believe how much time (and money) that ate up. It continues to eat up the money
with "finishing touches" like the garden, decorating etc.
I've had a few more thoughts on doing this, here's what I've got so far.
I'm going to use an MG Midget running gear, my datum point is the rear axle so in my head the position of the Midget rear axle is overlaid to
the TC location. The Midget propshaft will be standard and that gives the position of the gearbox and the engine too. The front suspension will be
moved forwards to match the position of the TC's front, the TC wheelbase is 14 inches longer than a Midget.
In terms of the Midget's hardware, it means taking the mechanical components plus the front chassis legs and front crossmember. The Midget uses
the front suspension supports as engine mounts so I can use the front chassis legs with their crossmember and suspension supports and fabricate new
engine mounts to suit.
The chassis will need to be fabricated, I think mild steel thin wall rectangular section tube will work. I need to pick up on the Midget's
front chassis legs, continue backwards to where the new engine mounts will be, then it's a bit vague until it picks up the rear spring
positions. The Midget's rear springs are quite wide as you can see below, the TC used outriggers which doesn't seem necessary if I make
the chassis wide.
With all these thoughts in my head and after lots of sheets of paper, I started with a CAD model of the finished car
I put some wheels on, as much to check the scale of the 3D model as anything else, the wheelbase is now correct
I sketched in a chassis, it's very approximate for the moment as I can't find any dimensions for the Midget parts and I don't have
one to measure!
Bodyshell image removed, this better shows the shape of the chassis. I'm going to use a flat panel for the sides so all I need to do is put the
ends of it in the right shape in both planes. This could be with metal supports fixed onto a plate which is bolted to the chassis. I want to be able
to remove the bodyshell in one piece rather than remove it in sections. At the rear is a machined profile which gives the shape of steel hammered
over an ash frame. Mine will be machined from plastic.
Next I sketched up the body shape as a flat piece. The idea is to make it from thin ABS or Polycarbonate, the same as the rear machined section and
then I'll plastic weld them together. The doors can be done in a similar way, perhaps a bit simpler but still thin plastic sheet stuck to a
machined solid part (made in sections to avoid too much material waste).
Getting this far allowed me to get quotes in and so far it looks favourable. Making a fibreglass shell would be great but I don't have the
skills and I'm sure the cost of the buck would be extortionate unless you're making a few. The front and rear wings will have to be
fibreglass as will the radiator grille (probably), the scuttle is too complex to make in anything other than a press tool or a fibreglass mould so for
the moment I've planned to use a metal one as they're only a few hundred pounds. I'd like to use metal wings too but they are a
couple of thousand pounds each
A TD or TF would be a more suitable choice to replicate because they used ifs and a stiffer frame. the TA/TB/TC had an axle mounted above the chassis
as did proper Morgans.
[I] “ What use our work, Bennet, if we cannot care for those we love? .”
― From BBC TV/Amazon's Ripper Street.
[/I]
Very true, but I don't like the look of the TD or TF, and if I did there are plenty of replicas around already I could buy.
I did toy with the idea of a solid front axle but that seems like a huge amount more work and I've got no idea where to start looking for
commonly available parts.
---------------------------------------------------------------
1968 Ford Anglia 105e, 1.7 Zetec SE, Mk2 Escort Workd Cup front end, 5 link rear
Build Blog - http://Anglia1968.weebly.com
