Author: Subject: Ford Zetec SE / Sigma inlet dimensions
Ugg10

posted on 24/3/14 at 10:41 PM Reply With Quote
Ford Zetec SE / Sigma inlet dimensions

Does anyone have the dimensions for the Ford Zetec SE (AKA Sigma) inlet ports, particularly length, width and spacing. Either the 1.6 or 1.7 as fitted to the Fiesta, Focus and Puma will do.

Many thanks in advance.

View User's Profile View All Posts By User U2U Member
Madinventions

posted on 24/3/14 at 11:47 PM Reply With Quote

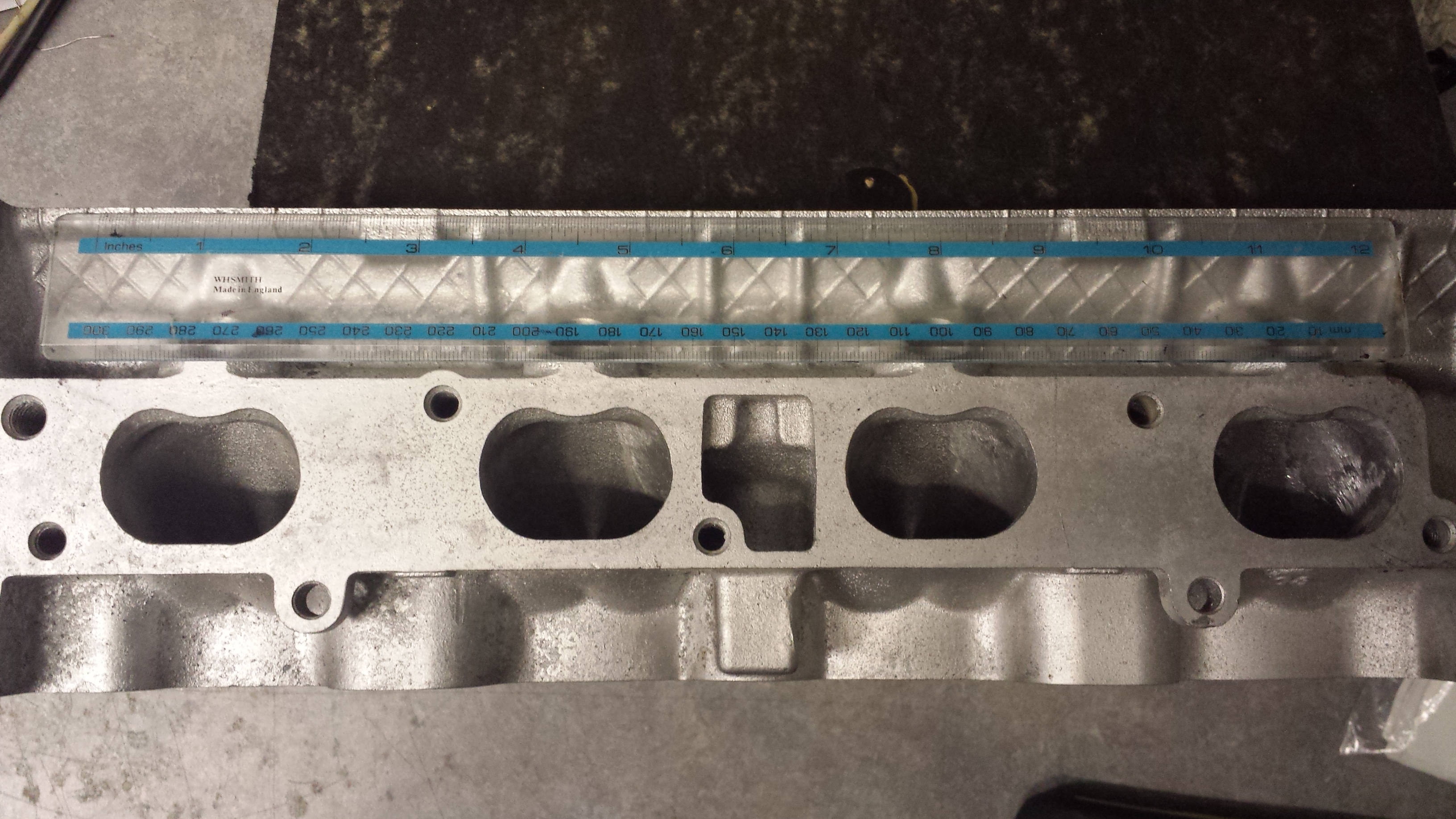

I've got a 1.6 SE head in front of me and the ports are 46mm wide x 31mm high and kidney shaped. They are on a 86/87mm spacing.

Hope this helps,
Ed.
SE1600Head
SE1600Head

Larger image here:
http://www.madinventions.co.uk/mojo/Images/head.jpg





Mojo build diary: http://www.madinventions.co.uk

Solo music project: Syrrenfor http://www.reverbnation.com/syrrenfor

View my band website:
http://www.shadowlight.org.uk

http://www.eastangliankitcars.co.uk/

View User's Profile Visit User's Homepage View All Posts By User U2U Member
Ugg10

posted on 25/3/14 at 07:17 AM Reply With Quote
Many thanks, much appreciated and good news as it looks like the itb's I have will fit nicely with just an adaptor plate.
View User's Profile View All Posts By User U2U Member
scootz

posted on 25/10/14 at 04:21 PM Reply With Quote
Bit of a thread revival!

Can someone with a Zetec-SE head or inlet manifold / gasket lying about please try and measure the circumference of the inlet port for me (ignoring the injector lip).

I've done a calculation based on the 46mm x 31mm values given above (123mm), but that's assuming the port is elliptical... which it isn't quite.

Thanks in advance.





It's Evolution Baby!

View User's Profile View All Posts By User U2U Member
Ugg10

posted on 25/10/14 at 07:29 PM Reply With Quote
it is closer to two semicircles linked by straight lines, based on 31mm high x 46mm long -

Circumference = 31xPi + (46-31)/2 = 127.4mm

Area = (31/2)^2 x Pi + 31x(46-31) = 1220mm^2

Equivalent area circular diameter = sqrt(705/pi)*2 = 39.4mm

Hope this helps.





---------------------------------------------------------------
1968 Ford Anglia 105e, 1.7 Zetec SE, Mk2 Escort Workd Cup front end, 5 link rear
Build Blog - http://Anglia1968.weebly.com

View User's Profile View All Posts By User U2U Member
scootz

posted on 25/10/14 at 08:55 PM Reply With Quote
It certainly does help!

Thank you... again!





It's Evolution Baby!

View User's Profile View All Posts By User U2U Member
