Populating Wiring Loom Connector
Afternoon

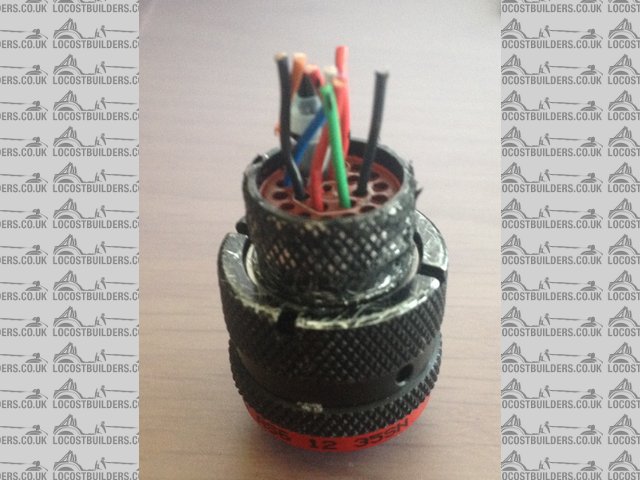

I need to remove the wires from this connector, and then re-populate all 22 pins with 2m lengths of wiring.
Unfortunately, I don't have the specialist tools to do the job myself.
Can anyone help... or recommend someone who can?
Many thanks
It's Evolution Baby!
|
|
|
|
|
nick205
|
| posted on 7/10/15 at 03:41 PM |
|
|
From memory, you need to dismantle the body to release the crimps. You will then need the correct crimps and tool to replace them reliably. The
tools are sometimes cheaper than expected and if it's worth doing, do it properly.
|
|
|
loggyboy
|
| posted on 7/10/15 at 03:45 PM |
|
|
Never seen one of these large connectors up close.
Are they not like most connectors? They usually held in with push metal tabs, i find a thin (watch makers/glass repair kit) flat head screwdriver
slides in and releases - with a bit of luck anyway!
Mistral Motorsport
|
|
|
scootz
|
| posted on 7/10/15 at 03:57 PM |
|
|
Cheers guys... I had a look at the tools required and nearly choked on my coffee when I saw the prices!
It's Evolution Baby!
|
|
|
nick205
|
| posted on 7/10/15 at 04:12 PM |
|
|
Looking again, that looks to be a MIL spec connector so yes, the prices may be high!
|
|
|
minitici
|
| posted on 7/10/15 at 04:43 PM |
|
|
Sometimes you get a plastic releasing tool when you buy spare contacts.
But you have probably seen the price of mil-spec contacts and housings.......
|
|
|
scootz
|
| posted on 7/10/15 at 04:49 PM |
|
|
Cheers! I've found some plastic tools at reasonable prices!
It's Evolution Baby!
|
|
|
minitici
|
| posted on 7/10/15 at 04:52 PM |
|
|
quote:
Originally posted by scootz
Cheers! I've found some plastic tools at reasonable prices!
Like these Tools
at £1 each.
|
|
|
scootz
|
| posted on 7/10/15 at 04:59 PM |
|
|
That's the chaps!
I guess I don't need any extortionately-priced Soireau or Deutsch branded tools for a one-off job... that I'll probably bodge anyway!

It's Evolution Baby!
|
|
|
Angel Acevedo
|
| posted on 7/10/15 at 06:31 PM |
|
|
Whats wrong with a "Correct" bodge with Scotchlocks??
Or if you don´t want to use the "Spam of the Devil" stuff, then use crimp on connectors and heat shrink...
Beware of what you wish.. for it may come true....
|
|
|
balidey
|
| posted on 7/10/15 at 08:45 PM |
|
|
My tip for removing pins.
If you have an old radio with the extending aerial, one of the sections of that is almost certainly the right size to slip over the pin, compress the
little barb and then you can retract the pin from the back.
You do lose the radio aerial though.
Dutch bears have terrible skin due to their clogged paws
|
|
|
ste
|
| posted on 7/10/15 at 10:31 PM |
|
|
I work with these every day, if you need anything let me know. I can crimp the pins on the wires for you if you need
|
|
|
ste
|
| posted on 7/10/15 at 10:32 PM |
|
|
let me know the part number on the red band round the bottom
|
|
|
