skint scotsman
|
 posted on 20/3/06 at 05:40 PM |
|
|
wiper wiring ????
seems to have been 'kinda' covered a few times but with no real conclusive answer, does anybody out there have or know of an 'idiot
proof' wiring diagram for this including relays etc??
pretty little pictures are always appreciated
p.s. its all standard ford stuff am trying to use apart from the loom it home made
cheers in advance
|
|
|
|
|
jambo
|
| posted on 20/3/06 at 05:45 PM |
|
|
what motor type
or is it all sierra
|
|
|
RazMan
|
| posted on 20/3/06 at 05:49 PM |
|
|
I've just finished doing just that with my Sierra switches. The only thing I couldn't figure out was the intermittent setting so I'm
having to settle for two speeds. I can post a diagram if it helps. You don't need a relay in that case.
[Edited on 20-3-06 by RazMan]
Cheers,
Raz
When thinking outside the box doesn't work any more, it's time to build a new box
|
|
|
skint scotsman
|
| posted on 20/3/06 at 06:12 PM |
|
|
think i've got two speeds aswell but if you could post the diagram that would be great.
did you build your own loom?
was begining to think i was being totaly thick with the intermitent thing looks like am not the only one to come unstuck there.
|
|
|
RazMan
|
| posted on 20/3/06 at 06:18 PM |
|
|
I think voodoo helps with wiper wiring but my spells are a bit rusty
I'll have a dig around and see what I can find.
Cheers,
Raz
When thinking outside the box doesn't work any more, it's time to build a new box
|
|
|
skint scotsman
|
| posted on 20/3/06 at 06:23 PM |
|
|
cheers
notice you say voodoo and not haynes manual
i was thinking the same
|
|
|
RazMan
|
| posted on 20/3/06 at 08:20 PM |
|
|
Here you go ... a bit basic but it helped me. I know it doesn't show any delay circuitry but I had tried for HOURS to get the damn thing to
co-operate and just couldn't get the parking to kick in when on the intermittent position. I even tried to get a Maplin 'delay robot'
circuit to take the place of the delay relay but the parking still didn't want to play
So I went back to basics and decided that a wiper delay was frivolous and unneccessary anyway
[Edited on 20-3-06 by RazMan]

Rescued attachment wiper diagram.jpg
Cheers,
Raz
When thinking outside the box doesn't work any more, it's time to build a new box
|
|
|
skint scotsman
|
| posted on 20/3/06 at 08:29 PM |
|
|
well done that man will give it a go and report back with my findings
|
|
|
Bob C
|
| posted on 20/3/06 at 10:18 PM |
|
|
Razman - if my electrics ever work it will all be down to you......
cheers mate
Bob
|
|
|
RazMan
|
| posted on 20/3/06 at 10:31 PM |
|
|
quote:
Originally posted by Bob C
Razman - if my electrics ever work it will all be down to you......
cheers mate
Bob
LOL then perhaps you will be good enough to tell me how to fix mine
Cheers,
Raz
When thinking outside the box doesn't work any more, it's time to build a new box
|
|
|
skint scotsman
|
| posted on 24/3/06 at 02:29 PM |
|
|
razmans wiring diagram worked a treat
undevoted thanks to razman well done that man
|
|
|
RazMan
|
| posted on 24/3/06 at 04:57 PM |
|
|
Glad to be of help sir
Cheers,
Raz
When thinking outside the box doesn't work any more, it's time to build a new box
|
|
|
RazMan
|
| posted on 24/3/06 at 05:17 PM |
|
|
I meant to ask - did you get the intermittent setting working?
Cheers,
Raz
When thinking outside the box doesn't work any more, it's time to build a new box
|
|
|
Dusty
|
| posted on 26/3/06 at 01:14 AM |
|
|

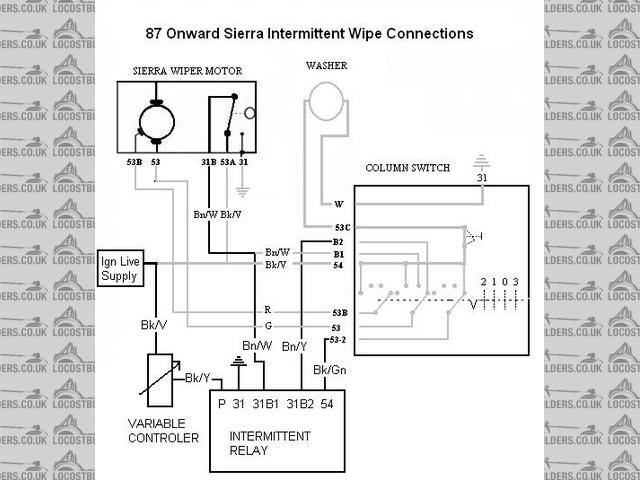

Try this Razman. (Out of interest thats an old diagram of mine you posted.)
[Edited on 26/3/06 by Dusty]

Rescued attachment 87intwipe.JPG
|
|
|
RazMan
|
| posted on 26/3/06 at 08:31 AM |
|
|
Thanks Dusty I was wondering where that drawing came from! Full credit goes to you then
I'll have to find another timer (coz my one exploded  ) and have another go next weekend.
Are the 'variable controller' and 'intermittent relay' special part numbers? Only my timer has 4 connections IIRC
The problem seems to be in the park circuit - I can get the timer to 'kick' the main relay but it just won't park in the
intermittent position.
[Edited on 26-3-06 by RazMan]
Cheers,
Raz
When thinking outside the box doesn't work any more, it's time to build a new box
|
|
|
Dusty
|
| posted on 1/4/06 at 07:11 PM |
|
|
Sounds like a faulty relay. If it parks in the normal switch off position it should park on intermittent. The critical wire is for parking is the Bn/W
that links 31B on the motor,B1 on the switch and 31B1 on the int relay. 53A on the motor and 54 on the switch must have ignition power supply
(Bk/V).
Four wire int relay simply omits the P connector and variable control. Numbering and connections are otherwise the same.
I used the variable control and relay that came with my sierra.
Good luck
|
|
|
