Griffin power systems inlet to throttle bodies
With the info and pictures sent to me by another forum member on here I spent the weekend making adapter plates to fit GSXR throttle bodies to a
Burton Power twin carb inlet manifold. It isn't fully finished yet and the adapter plates need to be trimmed down but tonight I thought I'd
have a trial fitting. What do you think?

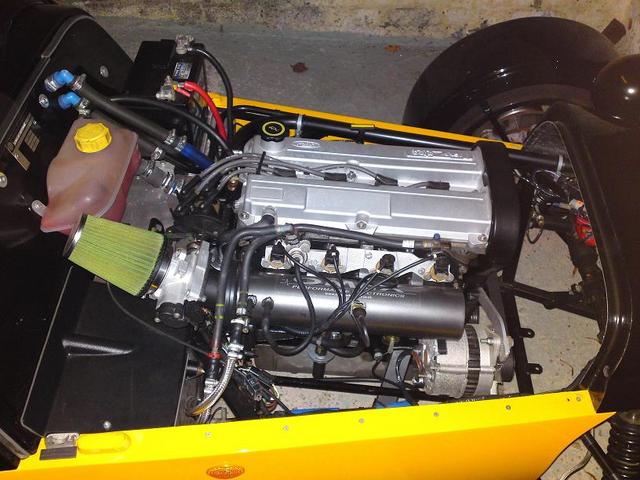

From this

Description
To this

Description

Description

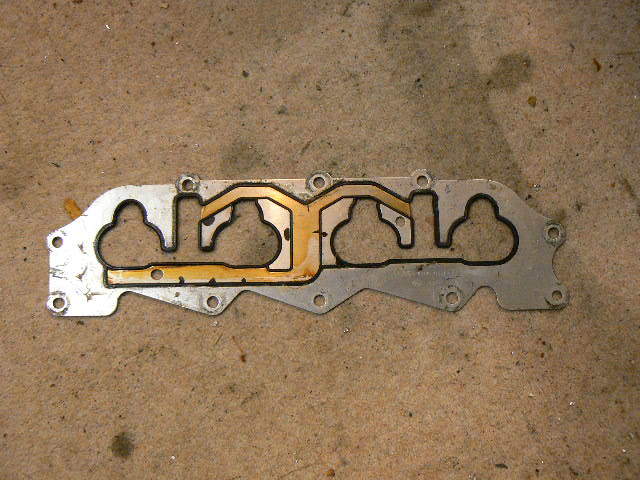

I now need to source an inlet manifold gasket. I have spoken to Burton's who say the one I need is the plastic thick one costing £22. The gasket
that was used with the griffin power systems inlet is a metal one. Anyone know where this is fitted on the Mondeo the engine came from and will it be
ok to use for the inlet manifold I have.
What have you used?

Description
Where does the crankcase breather connect to when using throttle bodies? It used to go to the inlet plenum but that has now gone so where do I now
connect it or do I put a filter on it?
[Edited on 8/12/09 by stuart_g]
|
|
|
|
|
wonderfulweasel
|
 posted on 7/12/09 at 10:53 PM |
|
|
That looks really good.
I'd take the breater to a catch tank.
|
|
|
djtom
|
| posted on 7/12/09 at 11:47 PM |
|
|
I think the plastic gasket was standard fit to Fiesta 1800 cc cars. Cost me about 4 quid from the local factors.
Nice work on the adaptors by the way!
Tom
|
|
|
will121
|
| posted on 8/12/09 at 08:40 AM |
|
|
the orignal crankcase breather on early zetec's went into the injector plate area, but wouldnt suppose your manifold has a facility for it?,
from the griffin gasket would look like it may have had a tapping which lines up with the hole at bottom left so a catch tank might be a easy option,
as for gaskets silvertop fiesta RS1800, Si's and early mondeos had simular gaskets but all the links in the gasket are purly for the breather
arrangement and might not be necessary in your case
|
|
|
MikeR
|
| posted on 8/12/09 at 12:03 PM |
|
|
Do you have any measurements from the griffin?
I'm tempted to make my own.
|
|
|
stuart_g
|
| posted on 8/12/09 at 12:19 PM |
|
|
I can get you some measurements later if you want.
I will be selling the griffin setup when I have the TB's setup and running OK if you're not in a hurry.
|
|
|
MikeR
|
| posted on 8/12/09 at 12:28 PM |
|
|
Not in a hurry (look how long i've been building).
Interested in measurements as i've got a crossflow in at the moment (zetec in the g/f garage) and would probably like to make something for
both.
|
|
|
MikeRJ
|
| posted on 8/12/09 at 03:31 PM |
|
|
How have you held the throttle bodies within the adapter plates?
|
|
|
stuart_g
|
| posted on 8/12/09 at 04:48 PM |
|
|
If you look at the bottom photo you can just about see an aluminium angle. This is bolted to the TB's and then to the adapter plates. The
TB's are also a very close fit in the adapter plates. Seems to hold them very well.
|
|
|
sebastiaan
|
| posted on 8/12/09 at 05:20 PM |
|
|
Have you ensured that the TB to adapter plate joint doesn't leak? If it does, balancing the TB's will be challenging...
|
|
|
stuart_g
|
| posted on 8/12/09 at 05:50 PM |
|
|
TB's to adapter plates and adapter plates to manifold will be sealed using a good quality gasket compound. This will only be done on final
assembly. Should only need a smear of compound on the TB's as they are a very good fit in the adapter plates. The holes in the adapter plates
where done on my lathe so they were made just big enough for each TB.
|
|
|
