type 9 - xflow blanking plate
tried for ages now to find something in search but im no closer,
what im looking for is a DXF or DWG file for a blanking plate between the type 9 bellhousing and 1300 x flow,
if anyone has one it will be much appreciated
cheers chris

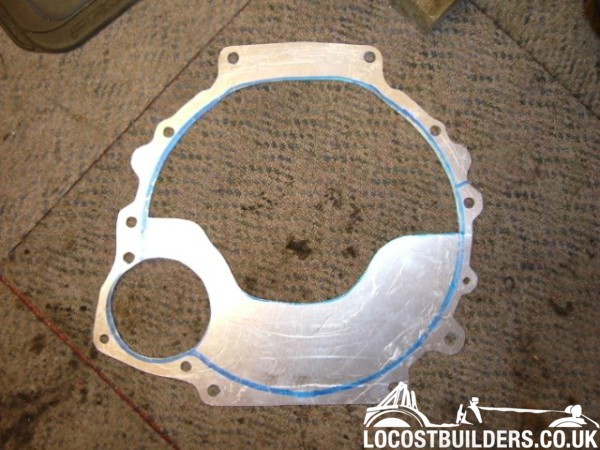

(the one below i believe is to go onto pinto but you get what im after)
.jpg)
|
|
|
|
|
SeaBass
|
| posted on 12/7/08 at 10:47 AM |
|
|
Not being funny - but why do you need a CAD file... You can use the Type 9 bellhousing to get a good representation, dont cut anything and keep it
oversize on sheet aluminium. Drill the two ~13mm holes for the locating dowels and work from there to get a plate that fits perfectly.
I've just done exactly the same for a Zetec - Type 9 plate to ensure no crap gets into the bellhousing. It's the second one I've
made (the other is in the Locost) and it took about an hour tops.
Oh - and split it into two parts make it much easier to install and remove... To fit the one above you'd need to take off the flywheel.
JC
[Edited on 12/7/08 by SeaBass]
|
|
|
chris_smith
|
| posted on 12/7/08 at 11:52 AM |
|
|
if i get the cad file i can just get it laser cut at work and save me time and ill know its spot on
|
|
|
SeaBass
|
| posted on 12/7/08 at 04:47 PM |
|
|
Well... good luck!
|
|
|
