Author: Subject: MK Rear uprights - Cracked!
Matt21

posted on 10/6/15 at 07:36 PM Reply With Quote
MK Rear uprights - Cracked!

Recently I had the rear wheels off and happened to notice cracks in the powder coating along the welds on the rear uprights.
I was doing a trackday a few days after this so thought it would be best to scrape off the coating and check it out properly.

And yes, both sides had actually cracked through the weld!

Thankfully my dad was free to reweld them for me.

Just another thing for people to look out for!

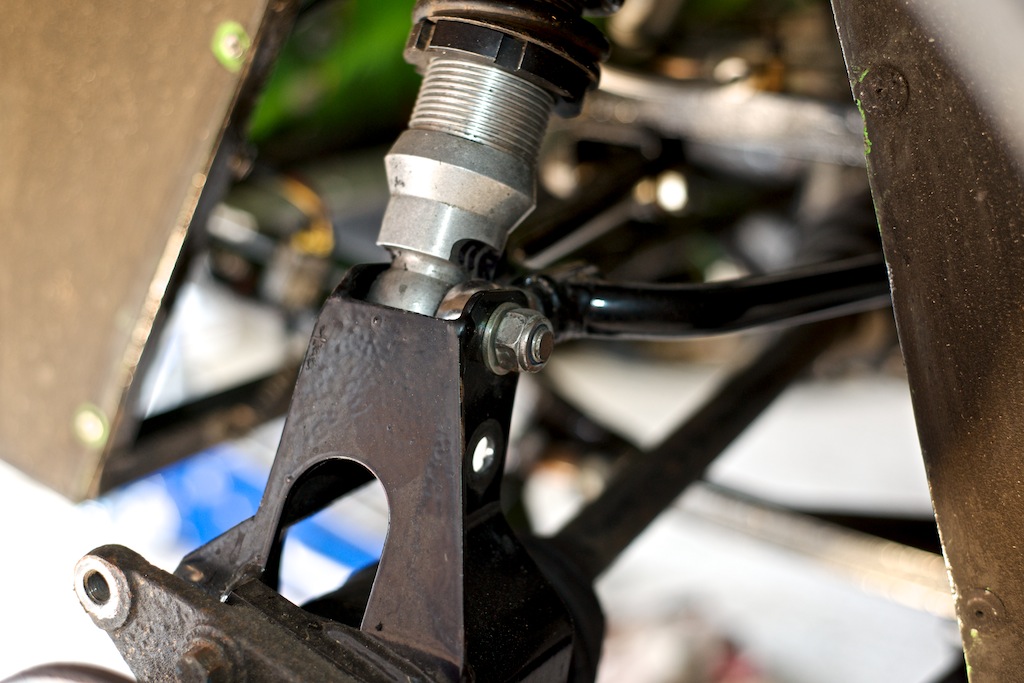

On this photo, the cracks ran either side of the bottom of the hole in the upright. The cause, square corners to the hole! these create very weak points, ideally the hole would just be round (or not there at all as it isn't needed!)



View User's Profile View All Posts By User U2U Member
SJ

posted on 10/6/15 at 08:02 PM Reply With Quote
I can't see the crack in that pic. Where exactly was it as I'd like to check mine?

Stu

View User's Profile View All Posts By User U2U Member
v8kid

posted on 10/6/15 at 08:13 PM Reply With Quote
I can't see it either





You'd be surprised how quickly the sales people at B&Q try and assist you after ignoring you for the past 15 minutes when you try and start a chainsaw

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member   v8kid 's Aim
yellowcab

posted on 10/6/15 at 08:17 PM Reply With Quote
Huh - I'm confused, that looks like my photo from my old car… as I was the only person that I knew of to run my rose jointed rear arms next to the shock absorbers to improve roll centre and lower CofG...
View User's Profile View All Posts By User U2U Member
40inches

posted on 10/6/15 at 08:30 PM Reply With Quote
Moving the arms up like that is fine, but ,there is now a weakness in the upright at the old wishbone mounting points.
The old crush tube should be bolted back in place to add some strength.

View User's Profile View All Posts By User U2U Member
prawnabie

posted on 10/6/15 at 08:46 PM Reply With Quote
I think he is just using that photo as a reference
View User's Profile View All Posts By User U2U Member
yellowcab

posted on 10/6/15 at 08:54 PM Reply With Quote
So he is… I added a crush tube in the lower hole after this pic
View User's Profile View All Posts By User U2U Member
austin man

posted on 10/6/15 at 09:01 PM Reply With Quote
The hole should have been welded up as moving the mounting higher up exerts more force lower down so the area where the hole is becomes the weaket point, this is a failing o modifying and not reinforcing the change IMO





Life is like a bowl of fruit, funny how all the weird looking ones are left alone

View User's Profile View All Posts By User U2U Member
Matt21

posted on 11/6/15 at 06:48 AM Reply With Quote
Oh sorry for the confusing... yes just google 'mk rear upright' to get a photo... there are no cracks in that one!

I forgot to get photos of mine, just welded it quickly!

basically either side of the big hole on the front, where the chunky square plate is welded on.

View User's Profile View All Posts By User U2U Member
austin man

posted on 11/6/15 at 07:49 PM Reply With Quote
I still think it would be down to the additional leverage exerted by moving the shock absorber mount





Life is like a bowl of fruit, funny how all the weird looking ones are left alone

View User's Profile View All Posts By User U2U Member
prawnabie

posted on 12/6/15 at 05:53 AM Reply With Quote
Doesn't sound like the OP has modified his though

[Edited on 12/6/15 by prawnabie]

View User's Profile View All Posts By User U2U Member
adithorp

posted on 12/6/15 at 07:24 AM Reply With Quote
quote:
Originally posted by austin man
I still think it would be down to the additional leverage exerted by moving the shock absorber mount


But is the OPs mounted like that? He's just used that picture (of yellowcabs upright) to show where his has cracked





"A witty saying proves nothing" Voltaire

http://jpsc.org.uk/forum/

View User's Profile View All Posts By User U2U Member
britishtrident

posted on 12/6/15 at 07:26 AM Reply With Quote
General pointers to any no pros repairing a crack, don't simply weld up the crack to repair it. (1) Drill a hole (at least 2mm in dia) at the sharp ends of crack to act as a crack arrestor. (2) Open out the crack with grinder or Dremmel. (3) Then weld up the crack. You can then weld on any additional reinforcing plates and fillets.





[I] “ What use our work, Bennet, if we cannot care for those we love? .”
― From BBC TV/Amazon's Ripper Street.
[/I]

View User's Profile View All Posts By User U2U Member
Matt21

posted on 12/6/15 at 09:46 AM Reply With Quote
no mine hadn't been tinkered with (from what i know anyway)

good point about the drilling and grinding.
Though mine was cracked the full length so there was no 'sharp end', simply ground it out and rewelded, and then welded again just to make sure!

View User's Profile View All Posts By User U2U Member
