Doctor Derek Doctors
|
| posted on 9/12/13 at 08:40 PM |
|
|
15" Image Split Rims & A048 tyres.
It's with great sadness that I'm selling these wheels as they are absolutely stunning but 13" is what I need for competition and I
can fit tyres to them myself.
Anyway, for sale a set of Image 3 piece cast split rims, style is BPS in Gun grey with polished outers. I believe they are 6" wide with a
1" wide outer rim (I will measure the offset if anyone is seriously interested).
They are ford fit 108 PCD with and ford fit centre spigot and tapered wheel nut seats (not the ford type top hat nut) all centre caps are present.
They are fitted with hardly used Yokohama A048 medium compound tyres 195/50/15 size (have done 2 dry trackdays where we were running in the car, and
one wet day where we did about 10 laps at a snails pace)
Also worth mentioning that they are fitted with BBS bolt in aluminium valves supplied for their GT racing wheels, not crappy rubber ones
They are practically unmarked (slight marks where tyres were fitted), no chips and dents.
These wheels are £250 each from image and the tyres are £150 each so £1600 a set!
I'm looking for 1/2 that so £800.
I know it's a lot but it's breaking my heart to sell them and they are truly gorgeous wheels, if you've spent time and effort to
make a nice car then these will finish it off perfectly. It's certainly worth viewing them and for this amount of money people are welcome to
come and have a trial fit and see how they look on there car (I will keep a firm hold of your keys  )
I'm in Derby, collection only obviously.
Link to wheel style:
http://www.imagewheels.co.uk/large_wheel_pages/bps.html
Link to price list
http://www.imagewheels.co.uk/pages/prices_cast.html

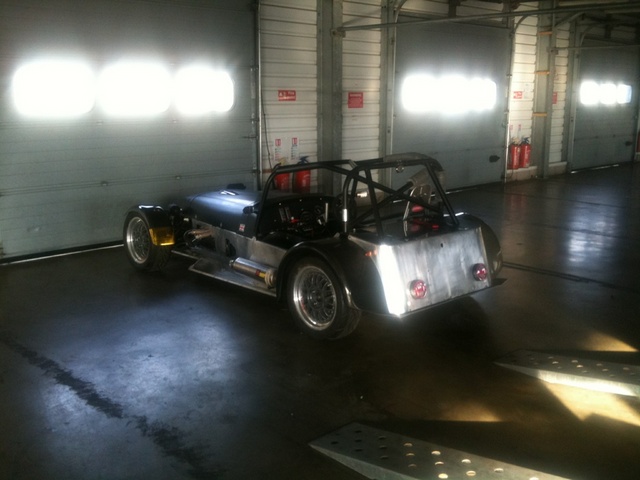

Picture of wheels on car:

Description
[Edited on 9/12/13 by Doctor Derek Doctors]
Designer and Supplier of the T89 Designs - Single Seater Locost. Build you own Single Seater Racecar for ~£5k.
Plans and Drawings available, U2U or e-mail for details.
Available Now: The Sports Racer Add-On pack, Build a full bodied Sports Racer for Trackdays, Sprints and Racing.
www.t89.co.uk
www.racecarwings.co.uk
callan@t89.co.uk
|
NOTE:This user is registered as a LocostBuilders trader and may offer commercial services to other users
|
|
|
Doctor Derek Doctors
|
| posted on 9/12/13 at 08:46 PM |
|
|

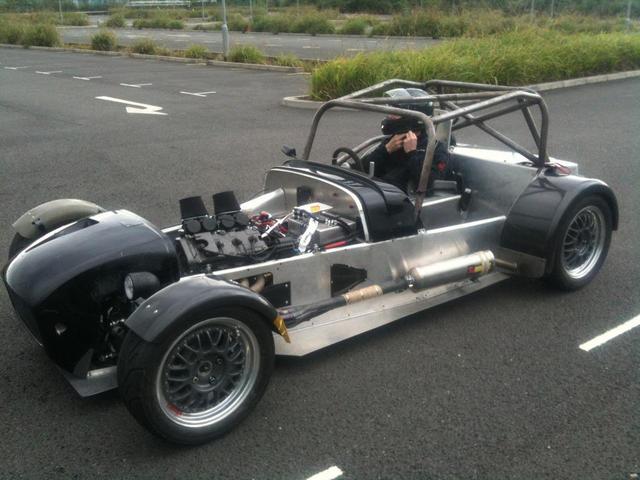

More pictures:

Description

Description

Description
Designer and Supplier of the T89 Designs - Single Seater Locost. Build you own Single Seater Racecar for ~£5k.
Plans and Drawings available, U2U or e-mail for details.
Available Now: The Sports Racer Add-On pack, Build a full bodied Sports Racer for Trackdays, Sprints and Racing.
www.t89.co.uk
www.racecarwings.co.uk
callan@t89.co.uk
|
NOTE:This user is registered as a LocostBuilders trader and may offer commercial services to other users
|
skippad
|
| posted on 10/12/13 at 09:02 AM |
|
|
Nice wheels, interested, all depends on the offset!
Skip
|
|
|
Doctor Derek Doctors
|
| posted on 10/12/13 at 09:26 AM |
|
|
quote:
Originally posted by skippad
Nice wheels, interested, all depends on the offset!
Skip
I'll measure them when I get home tonight to see what the offset is like.
They were spec'd for Ford kit car donor use though so fit over The standard Willwood replacement / m16 calipers at the front and Sierra
Cosworth calipers and discs at the back, the pictures were taken with no spacers fitted so you can see how they are just the right width for Locost
wheel arches
Designer and Supplier of the T89 Designs - Single Seater Locost. Build you own Single Seater Racecar for ~£5k.
Plans and Drawings available, U2U or e-mail for details.
Available Now: The Sports Racer Add-On pack, Build a full bodied Sports Racer for Trackdays, Sprints and Racing.
www.t89.co.uk
www.racecarwings.co.uk
callan@t89.co.uk
|
NOTE:This user is registered as a LocostBuilders trader and may offer commercial services to other users
|
carpmart
|
| posted on 10/12/13 at 03:48 PM |
|
|
Interested too, but again heavily dependent on offset.
You only live once - make the most of it!
Radical Clubsport, Kwaker motor
'94 MX5 MK1, 1.8
F10 M5 - 600bhp Daily Hack
Range Rover Sport - Wife's Car
Mercedes A class - Son's Car
|
|
|
Doctor Derek Doctors
|
| posted on 10/12/13 at 08:16 PM |
|
|
I measured them tonight, there is no offset stamped into them obviously as they are split rims.
Overall width across the bead is 6" with a 4.5" inner rim and a 1.5" outer.
The measurement from the flange face to the inner edge of the rim is 120mm.
All four wheels are the same.
It would be quite simple and cost effective to buy two new inner or outer pieces to give yourself wider rear wheels if that is what was needed.
I've taken some pictures but can't get the upload to work from my ipad, I can send pictures by e-mail or text though.
Designer and Supplier of the T89 Designs - Single Seater Locost. Build you own Single Seater Racecar for ~£5k.
Plans and Drawings available, U2U or e-mail for details.
Available Now: The Sports Racer Add-On pack, Build a full bodied Sports Racer for Trackdays, Sprints and Racing.
www.t89.co.uk
www.racecarwings.co.uk
callan@t89.co.uk
|
NOTE:This user is registered as a LocostBuilders trader and may offer commercial services to other users
|
skippad
|
| posted on 10/12/13 at 08:22 PM |
|
|
I'll check my wheels, and i'll get back to you
|
|
|
carpmart
|
| posted on 10/12/13 at 08:29 PM |
|
|
I make this a 44mm offset, is my maths right anyone?
Might be a few mm more than I can handle
You only live once - make the most of it!
Radical Clubsport, Kwaker motor
'94 MX5 MK1, 1.8
F10 M5 - 600bhp Daily Hack
Range Rover Sport - Wife's Car
Mercedes A class - Son's Car
|
|
|
Hellfire
|
| posted on 10/12/13 at 08:38 PM |
|
|
Offset(ET) = Backspace(T) - Overall Width(OW)/2
ET=T-(OW/2)
ET=120mm - (150mm/2)
ET=120mm - 75mm
ET=45
Phil
[Edited on 10-12-13 by Hellfire]
|
|
|
Doctor Derek Doctors
|
| posted on 10/12/13 at 08:44 PM |
|
|
I measured the 120mm from the inner edge of the rim (which has an extra protective lip) rather than the bead so the offset would be more like ET40.
You could always space them out though, as said they don't fowl the usual locost/Westfield brake/hub/arch set-ups.
Designer and Supplier of the T89 Designs - Single Seater Locost. Build you own Single Seater Racecar for ~£5k.
Plans and Drawings available, U2U or e-mail for details.
Available Now: The Sports Racer Add-On pack, Build a full bodied Sports Racer for Trackdays, Sprints and Racing.
www.t89.co.uk
www.racecarwings.co.uk
callan@t89.co.uk
|
NOTE:This user is registered as a LocostBuilders trader and may offer commercial services to other users
|
carpmart
|
| posted on 10/12/13 at 08:44 PM |
|
|
quote:
Originally posted by Hellfire
Offset(ET) = Backspace(T) - Overall Width(OW)/2
ET=T-(OW/2)
ET=120mm - (150mm/2)
ET=120mm - 75mm
ET=45
Phil
[Edited on 10-12-13 by Hellfire]
Thanks Phil!
[Edited on 10/12/13 by carpmart]
You only live once - make the most of it!
Radical Clubsport, Kwaker motor
'94 MX5 MK1, 1.8
F10 M5 - 600bhp Daily Hack
Range Rover Sport - Wife's Car
Mercedes A class - Son's Car
|
|
|
carpmart
|
| posted on 10/12/13 at 08:49 PM |
|
|
Final question from me is what does a wheel and tyre weigh please?
You only live once - make the most of it!
Radical Clubsport, Kwaker motor
'94 MX5 MK1, 1.8
F10 M5 - 600bhp Daily Hack
Range Rover Sport - Wife's Car
Mercedes A class - Son's Car
|
|
|
Hellfire
|
| posted on 10/12/13 at 08:59 PM |
|
|
Assuming I've understood the measurements correctly, if the backspace is actually 125mm from the mounting face of the wheel to the bead edge,
that would make the wheels ET50
Phil
|
|
|
Doctor Derek Doctors
|
| posted on 10/12/13 at 09:12 PM |
|
|
quote:
Originally posted by Hellfire
Assuming I've understood the measurements correctly, if the backspace is actually 125mm from the mounting face of the wheel to the bead edge,
that would make the wheels ET50
Phil
No the other way round. 115mm from the mounting face to the bead edge making it ET40
Designer and Supplier of the T89 Designs - Single Seater Locost. Build you own Single Seater Racecar for ~£5k.
Plans and Drawings available, U2U or e-mail for details.
Available Now: The Sports Racer Add-On pack, Build a full bodied Sports Racer for Trackdays, Sprints and Racing.
www.t89.co.uk
www.racecarwings.co.uk
callan@t89.co.uk
|
NOTE:This user is registered as a LocostBuilders trader and may offer commercial services to other users
|
Flick
|
| posted on 10/12/13 at 09:13 PM |
|
|
u2u.
|
|
|
carpmart
|
| posted on 10/12/13 at 09:15 PM |
|
|
ah, ET40 could work then!
You only live once - make the most of it!
Radical Clubsport, Kwaker motor
'94 MX5 MK1, 1.8
F10 M5 - 600bhp Daily Hack
Range Rover Sport - Wife's Car
Mercedes A class - Son's Car
|
|
|
Doctor Derek Doctors
|
| posted on 10/12/13 at 09:15 PM |
|
|
quote:
Originally posted by carpmart
Final question from me is what does a wheel and tyre weigh please?
I have no idea, the weights for the wheels nor' tyres are on Image or Yokohama websites and I don't have any scales.
All I say is that they feel lighter than the 13" Compomotive ML's that have replaced them
Designer and Supplier of the T89 Designs - Single Seater Locost. Build you own Single Seater Racecar for ~£5k.
Plans and Drawings available, U2U or e-mail for details.
Available Now: The Sports Racer Add-On pack, Build a full bodied Sports Racer for Trackdays, Sprints and Racing.
www.t89.co.uk
www.racecarwings.co.uk
callan@t89.co.uk
|
NOTE:This user is registered as a LocostBuilders trader and may offer commercial services to other users
|
skippad
|
| posted on 11/12/13 at 05:04 PM |
|
|
after measuring and remeasuring and calculating, ive worked out the offset is going to add 20mm each side...
which means front arches will need seriously "re-adjusting" to fit and the rears will rub on heavy cornering.....so sorry they not right
ones for me
|
|
|
daniel mason
|
| posted on 11/12/13 at 05:31 PM |
|
|
id highly doubt with a 40mm+ offset they will make it wider! unless your currently running over et60 which id also doubt!
|
|
|
Doctor Derek Doctors
|
| posted on 16/12/13 at 10:33 PM |
|
|
Still for sale
Designer and Supplier of the T89 Designs - Single Seater Locost. Build you own Single Seater Racecar for ~£5k.
Plans and Drawings available, U2U or e-mail for details.
Available Now: The Sports Racer Add-On pack, Build a full bodied Sports Racer for Trackdays, Sprints and Racing.
www.t89.co.uk
www.racecarwings.co.uk
callan@t89.co.uk
|
NOTE:This user is registered as a LocostBuilders trader and may offer commercial services to other users
|
CNHSS1
|
| posted on 17/12/13 at 10:18 AM |
|
|
I have 15" Image split rims with billet centres, some weights info below
tyre and rim weight comparisons may 08
kumho 205/50x15 V70 list 1B 7" split rim 15.2kg
Kumho 225/50x15 V70 list 1B 8.5" split rim 16.3kg
No tyre 7" split rim 5.6kg
No tyre 8.5" split rim 6.05kg
No tyre 9" split rim 6.2kg
No tyre 10" split rim 6.35kg
Avon 8.5x21.5x15 crossply slick 9" split rim 13.7kg
Avon 10x21.5x15 crossply slick 10" split rim 14.8kg
hope it helps
CNH
"Racing is life, everything else, before or after, is just waiting"---Steve McQueen
|
|
|
Doctor Derek Doctors
|
| posted on 8/1/14 at 08:56 PM |
|
|
Lovely wheels and tires still for sale
Designer and Supplier of the T89 Designs - Single Seater Locost. Build you own Single Seater Racecar for ~£5k.
Plans and Drawings available, U2U or e-mail for details.
Available Now: The Sports Racer Add-On pack, Build a full bodied Sports Racer for Trackdays, Sprints and Racing.
www.t89.co.uk
www.racecarwings.co.uk
callan@t89.co.uk
|
NOTE:This user is registered as a LocostBuilders trader and may offer commercial services to other users
|
Stevenbobs
|
| posted on 10/1/14 at 03:43 PM |
|
|
DDD,
Can I ask where you got the shark teeth graphics for your nosecone?
Steve.
If it moves and shouldn't..Duct Tape. If it doesn't move and should...WD-40.
|
|
|
Doctor Derek Doctors
|
| posted on 10/1/14 at 08:00 PM |
|
|
quote:
Originally posted by Stevenbobs
DDD,
Can I ask where you got the shark teeth graphics for your nosecone?
Steve.
Painted them with my own free hands, the naked chick on the bonnet was done by an artist friend of mine.
I'll do your nose cone if you by the wheels!
Designer and Supplier of the T89 Designs - Single Seater Locost. Build you own Single Seater Racecar for ~£5k.
Plans and Drawings available, U2U or e-mail for details.
Available Now: The Sports Racer Add-On pack, Build a full bodied Sports Racer for Trackdays, Sprints and Racing.
www.t89.co.uk
www.racecarwings.co.uk
callan@t89.co.uk
|
NOTE:This user is registered as a LocostBuilders trader and may offer commercial services to other users
|
Doctor Derek Doctors
|
| posted on 2/2/14 at 05:49 PM |
|
|
Now on eBay to fund a garage roof replacement:
Item no:
331121099301
[Edited on 2/2/14 by Doctor Derek Doctors]
