nathanharris1987
|
| posted on 23/10/08 at 10:03 AM |
|
|
Sierra brake cylinder res level sender
3 pins on this in the plug of the reservoir, how do I wire it in to my loom/ the brake warning light?

res sender 3 pins
Do I need a special plug or can I just run off of one or all these conections?
Ta
Nath
|
|
|
|
|
rost
|
| posted on 23/10/08 at 10:36 AM |
|
|
If I recall correctly it just connects the two outer contacts. You can check by measuring resistance on the two and pressing the button on top.
Charlie don't surf!
|
|
|
DarrenW
|
| posted on 23/10/08 at 10:56 AM |
|
|
Mine is only wired with 2 of the connectors - im sure its the outer 2.
|
|
|
DarrenW
|
| posted on 23/10/08 at 10:57 AM |
|
|
If you dont have the Ford plug you should be able to get female spade connectors to fit.
|
|
|
twybrow
|
| posted on 23/10/08 at 11:01 AM |
|
|
This is how I did mine:

Circuit diagram
I am using two sensors (two resevoirs). the circuit starts with a 12v supply, and ends when it goes to ground....
|
|
|
02GF74
|
| posted on 23/10/08 at 11:12 AM |
|
|
^^^ 4.7 mm spades will fit.
it has been posted before so search; if you struggle I cna take a look.
but from memory, two of the contacts are common - it allows you to wire the handbrake switch to the cap.
the purple circles are the 3 terminals on the cap. you need to figure out what is connected to what!

Rescued attachment brake_sw.JPG
|
|
|
nathanharris1987
|
| posted on 23/10/08 at 12:29 PM |
|
|
ta lads, easy as pie!
|
|
|
Dusty
|
| posted on 23/10/08 at 06:14 PM |
|
|

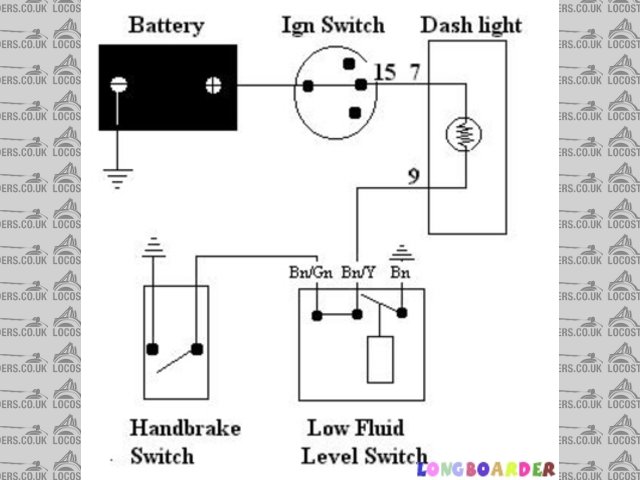

Or this.

Rescued attachment lowbrakefluid.jpg
|
|
|
